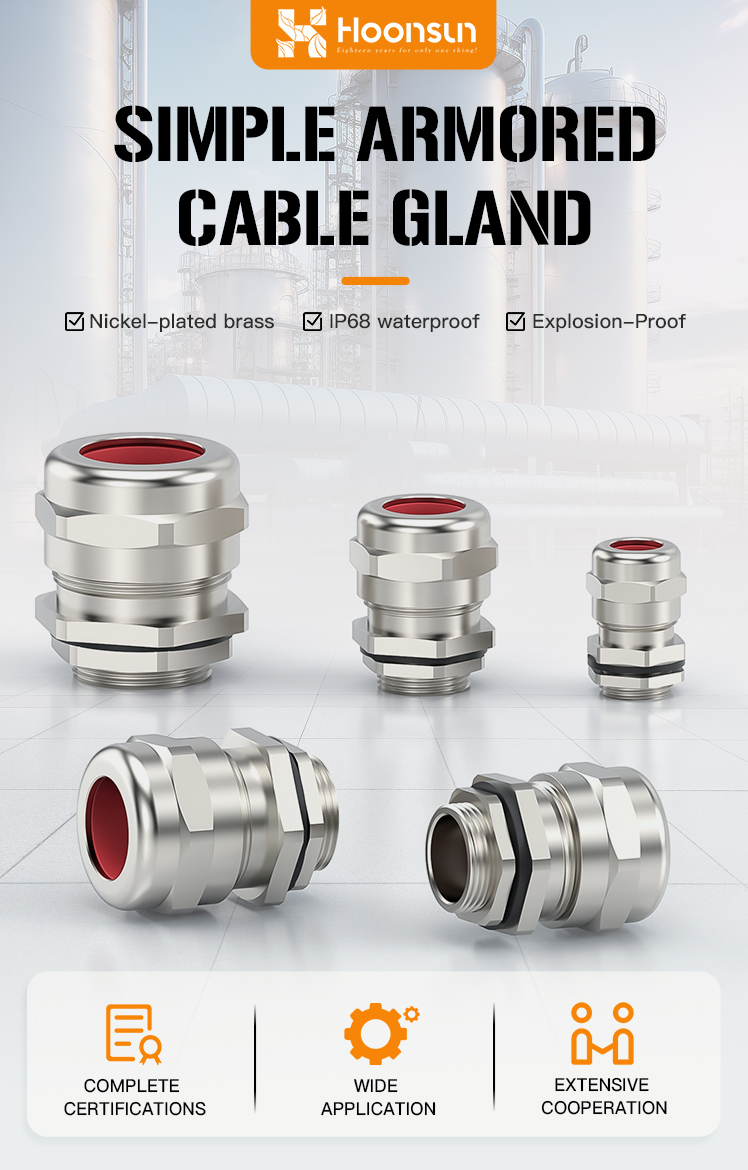

China Simple Armored Cable Gland with Dual IP68 and UL Certification Supplier, Factories

By using our Simple Armored Cable Gland, you can achieve a quick and manual installation, while providing reliable protection. This product is also double-certified in accordance with both IP68 and UL standards.

Certified for Global Marketsï¼š

æœªæ ‡é¢˜-1.png

Send Inquiry

Product Description

Product Highlights

Hand-Tightened Assembly

Requires no special tools for fast and efficient installation.

Armored Cable Locking

Securely grips the armor layer to resist pull and vibration forces.

Dual Certification

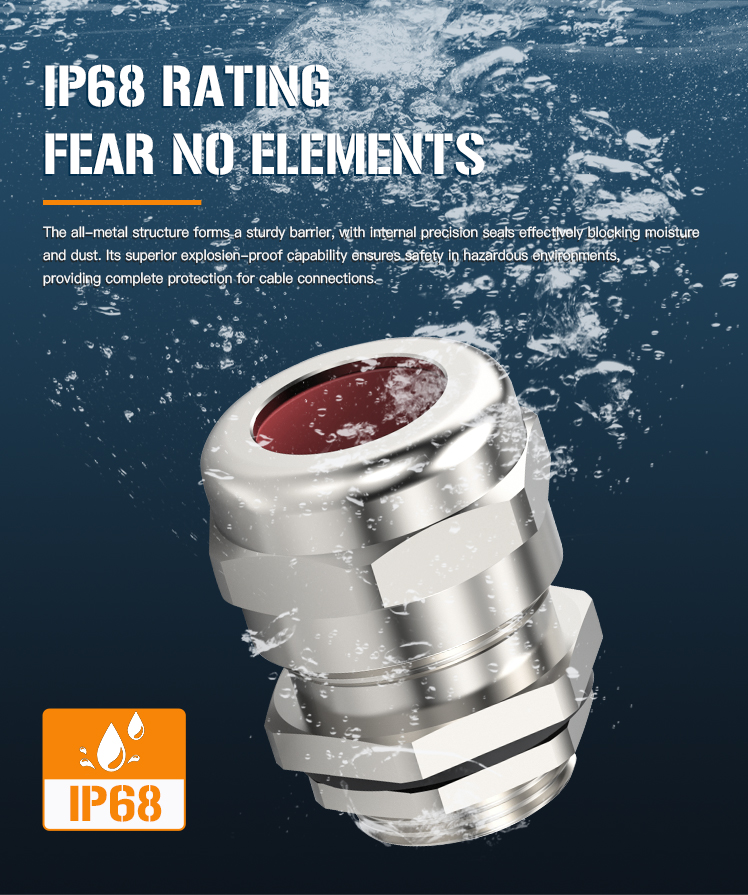

Independently certified for both IP68 water immersion and UL safety requirements.

Applications

✔

General industrial control panel and mechanical wiring installation.

✔

Projects focusing on cost control through reliable certified cable connection methods.

✔

Outdoor lighting fixtures, water treatment systems, and outdoor junction boxes.

✔

Conveyor systems, HVAC equipment, and vibration-prone machinery.

✔

Strict sealing environments like petrochemical plants and mining operations.

Key Benefits

Saves Time & Labor: Streamlined installation process reduces construction time.

Enhanced Mechanical Security: Prevents joint loosening for stable connections.

Environmental Sealing: Effectively blocks dust and moisture protection.

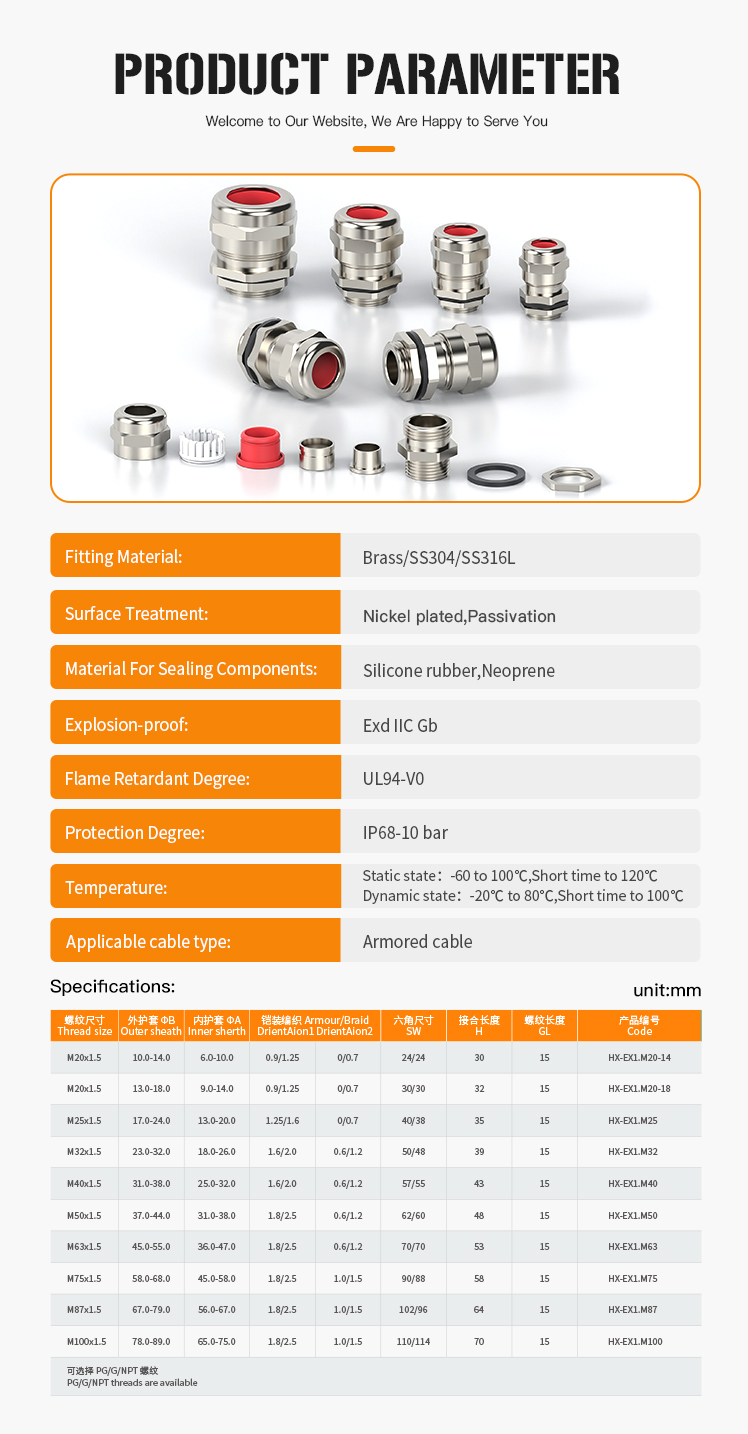

Product Parameter

Unit: mm

Thread size	B Outer sheath	A Inner sheath	Armour/Braid (Orient 1/2)		SW	H	GL	Code
M20x1.5	10.0-14.0	6.0-10.0	0.9/1.25	0/0.7	24/24	30	15	HX-EX1.M20-14
M20x1.5	13.0-18.0	9.0-14.0	0.9/1.25	0/0.7	30/30	32	15	HX-EX1.M20-18
M25x1.5	17.0-24.0	13.0-20.0	1.25/1.6	0/0.7	40/38	35	15	HX-EX1.M25
M32X1.5	23.0-32.0	18.0-26.0	1.6/2.0	0.6/1.2	50/48	39	15	HX-EX1.M32
M40X1.5	31.0-38.0	25.0-32.0	1.6/2.0	0.6/1.2	57/55	43	15	HX-EX1.M40
M50x1.5	37.0-44.0	31.0-38.0	1.8/2.5	0.6/1.2	62/60	48	15	HX-EX1.M50
M63x1.5	45.0-55.0	36.0-47.0	1.8/2.5	0.6/1.2	70/70	53	15	HX-EX1.M63
M75x1.5	58.0-68.0	45.0-58.0	1.8/2.5	1.0/1.5	90/88	58	15	HX-EX1.M75
M87X1.5	67.0-79.0	56.0-67.0	1.8/2.5	1.0/1.5	102/96	64	15	HX-EX1.M87
M100x1.5	78.0-89.0	65.0-75.0	1.8/2.5	1.0/1.5	110/114	70	15	HX-EX1.M100
PG/G/NPT threads are available

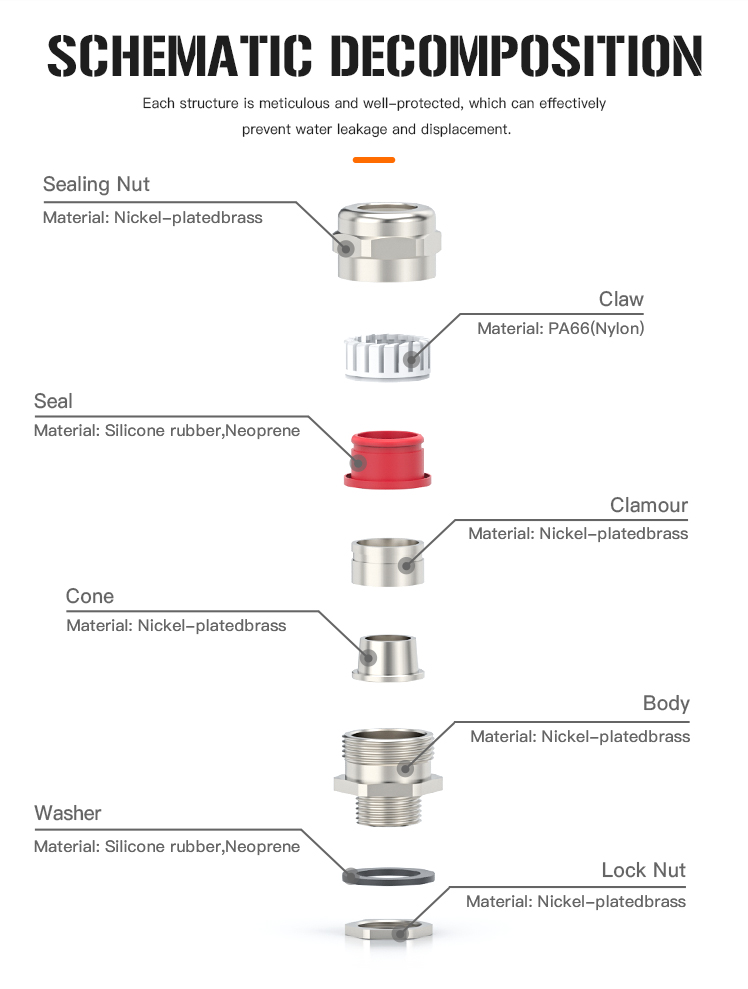

Detailed Image Gallery

Frequently Asked Questions

What certifications does this armored cable gland hold?

It is dual-certified for IP68 water immersion and meets UL safety requirements for industrial applications.

Is special tooling required for installation?

No, it features a hand-tightened assembly design that allows for fast and efficient installation without special tools.

Can this be used in high-vibration environments?

Yes, the armored cable locking mechanism is specifically designed to resist pull and vibration forces, preventing joint loosening.

Are other thread types besides Metric available?

Yes, in addition to Metric (M20-M100), PG, G, and NPT threads are also available upon request.

What kind of protection does it provide against the environment?

It provides essential environmental sealing, effectively blocking out dust and moisture to protect internal electrical components.

Where is this product typically applied?

Common applications include industrial control panels, outdoor lighting, water treatment systems, conveyor systems, and mining operations.
