China Metal Cable Gland Length Type with UL and IP68 Suppliers, Factories

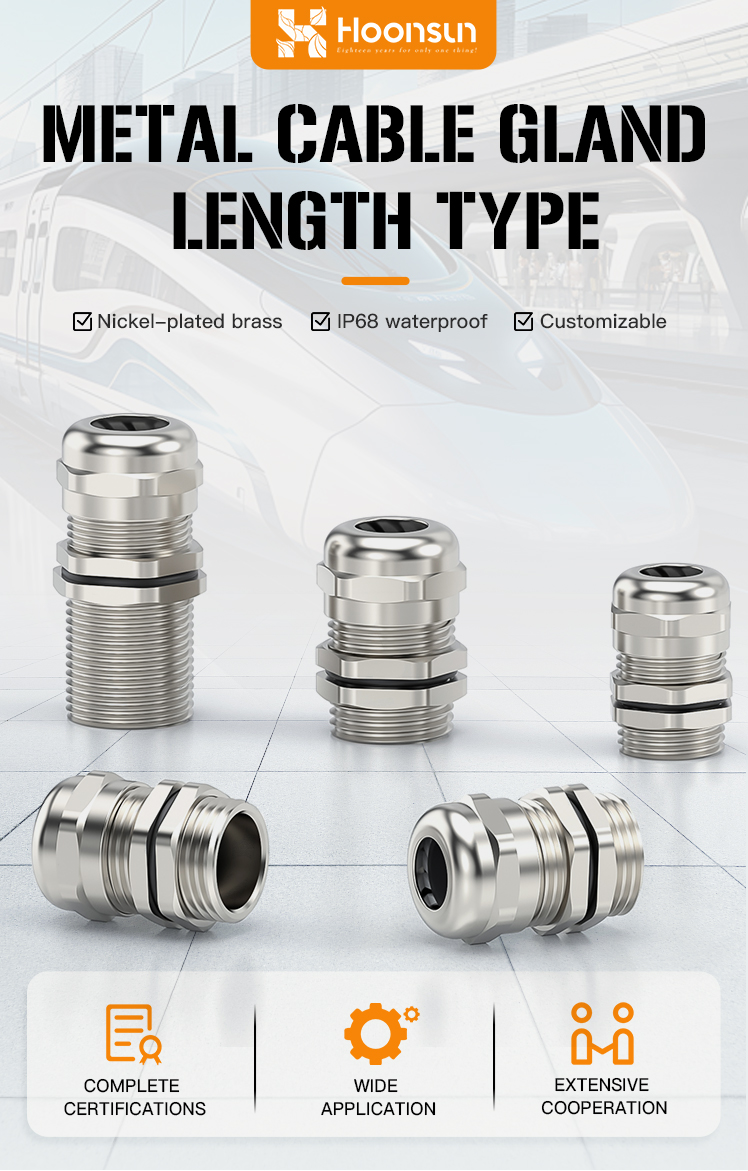

The Metal Cable Gland Length Type with UL and IP68 certifications offers a stable and waterproof sealing effect for thick or double-layer protective enclosures used in harsh industrial environments.

Certified for Global Marketsï¼š

æœªæ ‡é¢˜-1.png

Send Inquiry

Product Description

Product Highlights

Extended Body for Special Scenarios Longer main body than conventional models, enabling penetration into deep-cavity equipment or thick-walled cabinets. Suitable for long-distance cable penetration installation, avoiding excessive cable bending.

Full-Length Enhanced Protection The extended section maintains a complete sealing structure with IP65+ protection rating, providing full-length dustproof, waterproof, and oil-proof performance, adaptable to harsh environments like damp and dusty areas.

Secure Connection with Strong Anti-Disturbance Equipped with high-strength clamping components and an anti-slip structure, featuring excellent tensile and anti-vibration performance to prevent loosening caused by long-term use or external forces.

Wide Compatibility & Easy Installation Compatible with various cable specifications and thread standards (PG, NPT, and Metric), allowing quick manual assembly. Suitable for special wiring scenarios such as deep-cavity equipment, outdoor cabinets, and thick-walled distribution boxes.

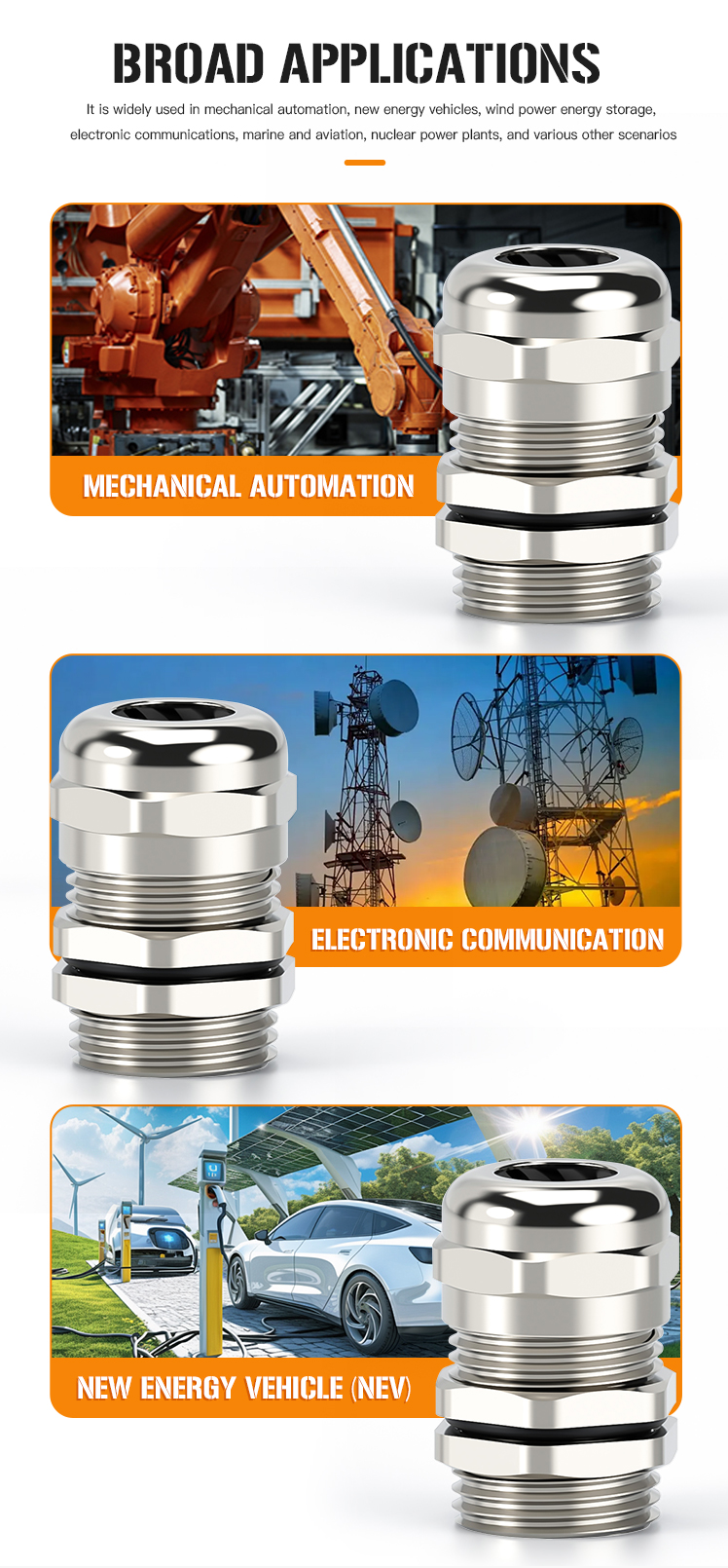

Applications

Deep junction boxes, armored cable fittings, or control panels with insulated barriers.
Power systems, marine installations, automation equipment, and heavy machinery.
Complex cable routing and thick-panel enclosures in harsh industrial environments.
Special wiring scenarios such as deep-cavity equipment, outdoor cabinets, and thick-walled distribution boxes.

Key Benefits

Secure and Watertight Seal Designed for installations requiring longer thread engagement, providing a reliable seal through thick or double-layered enclosure walls.

Durability and Corrosion Resistance Manufactured from high-quality nickel-plated brass or stainless steel, offering excellent corrosion resistance and long-term mechanical stability.

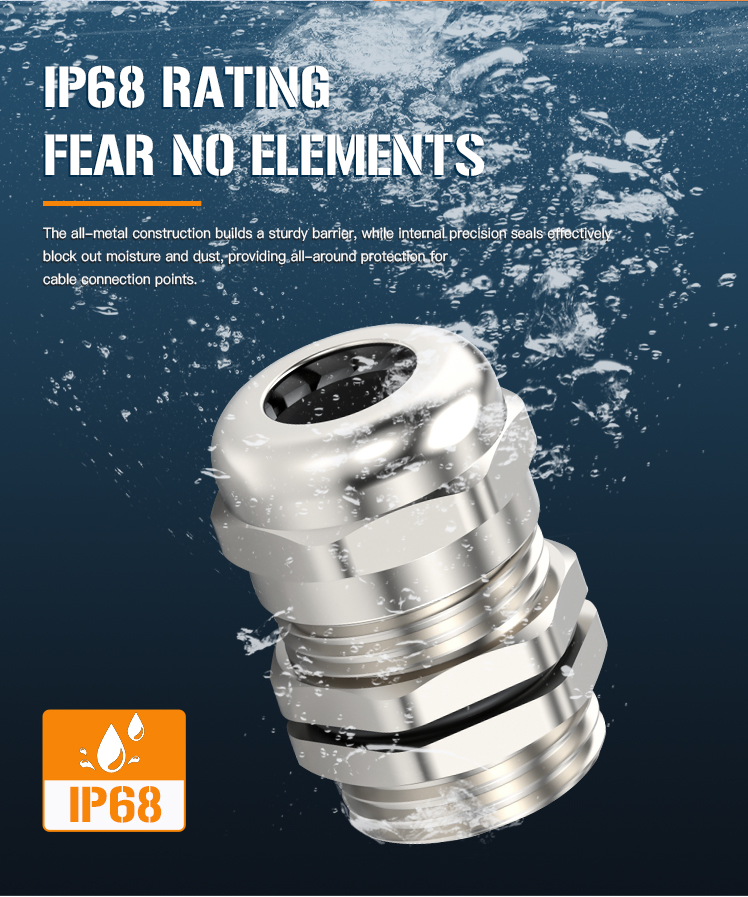

IP68 Waterproof and Dustproof Protection Precision-machined threads and advanced sealing rings ensure maximum protection against moisture, oil, and environmental exposure.

Strain Relief and Electrical Continuity Maintains excellent strain relief and grounding, ideal for demanding applications.

Compliance with International Standards Complies with CE, UL, and RoHS, ensuring a durable and reliable solution for professional-grade cable protection.

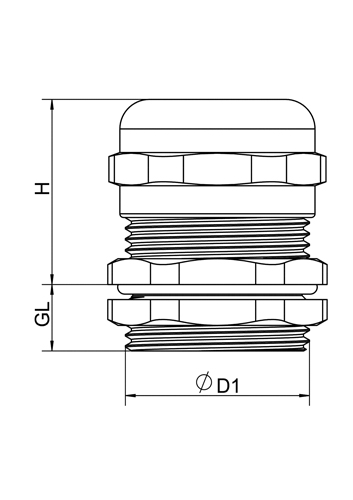

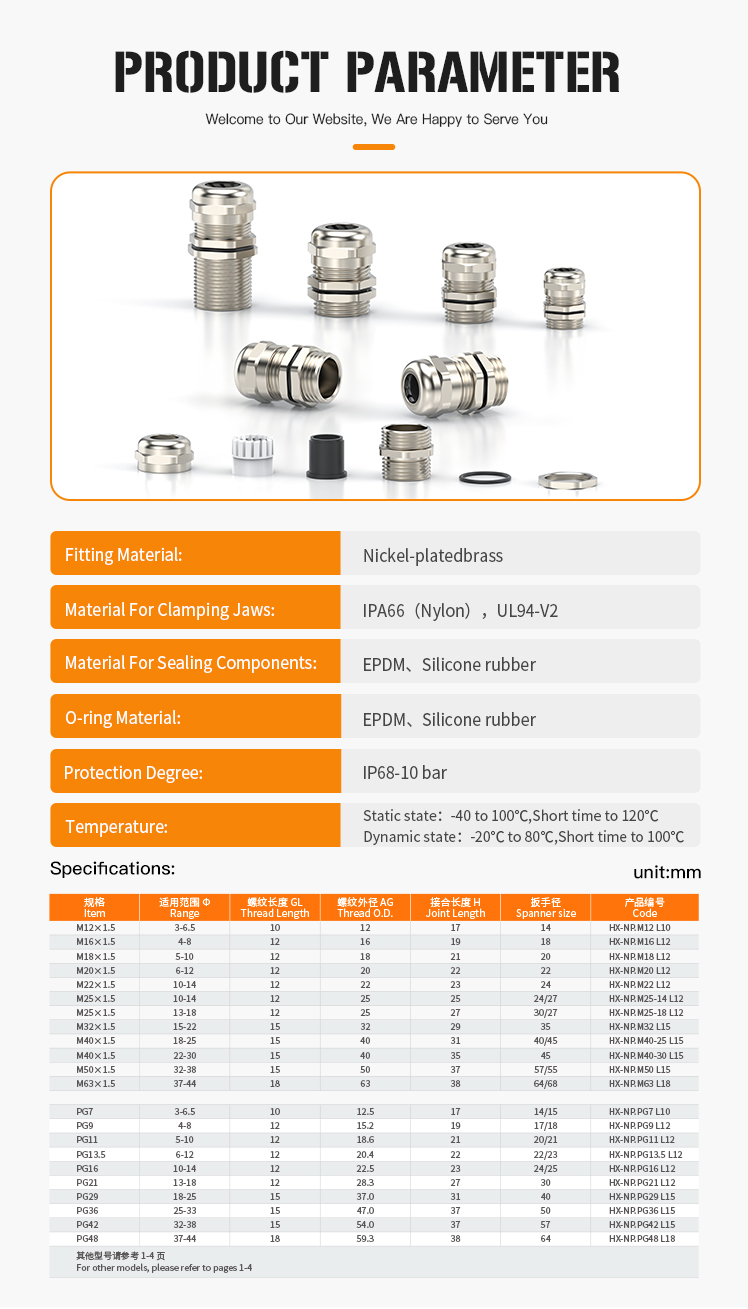

Product Parameter

Unit: mm

Item	Range	GL Thread Length	AG Thread O.D.	H Joint Length	Spanner size	Code
M12×1.5	3-6.5	10	12	17	14	HX-NP.M12 L10
M16×1.5	4-8	12	16	19	18	HX-NP.M16 L12
M18×1.5	5-10	12	18	21	20	HX-NP.M18 L12
M20×1.5	6-12	12	20	22	22	HX-NP.M20 L12
M22×1.5	10-14	12	22	23	24	HX-NP.M22 L12
M25×1.5	10-14	12	25	25	24/27	HX-NP.M25-14 L12
M25×1.5	13-18	12	25	27	30/27	HX-NP.M25-18 L12
M32×1.5	15-22	15	32	29	35	HX-NP.M32 L15
M40×1.5	18-25	15	40	31	40/45	HX-NP.M40-25 L15
M40×1.5	22-30	15	40	35	45	HX-NP.M40-30 L15
M50×1.5	32-38	15	50	37	57/55	HX-NP.M50 L15
M63×1.5	37-44	18	63	38	64/68	HX-NP.M63 L18
PG7	3-6.5	10	12.5	17	14/15	HX-NP.PG7 L10
PG9	4-8	12	15.2	19	17/18	HX-NP.PG9 L12
PG11	5-10	12	18.6	21	20/21	HX-NP.PG11 L12
PG13.5	6-12	12	20.4	22	22/23	HX-NP.PG13.5 L12
PG16	10-14	12	22.5	23	24/25	HX-NP.PG16 L12
PG21	13-18	12	28.3	27	30	HX-NP.PG21 L12
PG29	18-25	15	37.0	31	40	HX-NP.PG29 L15
PG36	25-33	15	47.0	37	50	HX-NP.PG36 L15
PG42	32-38	15	54.0	37	57	HX-NP.PG42 L15
PG48	37-44	18	59.3	38	64	HX-NP.PG48 L18

Detailed Image

Frequently Asked Questions

Q1: What are the main advantages of an extended body cable gland?

The extended body allows the gland to penetrate deep-cavity equipment or thick-walled cabinets, providing a secure connection where standard glands cannot reach.

Q2: Does this cable gland provide waterproof protection?

Yes, it features an IP68 protection rating, ensuring it is fully dustproof and waterproof, making it suitable for harsh industrial and outdoor environments.

Q3: What materials are these glands made of?

They are typically manufactured from high-quality nickel-plated brass or stainless steel for maximum durability and corrosion resistance.

Q4: Is it compatible with international thread standards?

Yes, our cable glands are compatible with Metric, PG, and NPT thread standards to meet global installation requirements.

Q5: Are these glands compliant with safety standards?

Yes, they comply with CE, UL, and RoHS standards, ensuring safety and reliability for professional-grade electrical protection.

Q6: In what environments are these most commonly used?

They are ideal for deep junction boxes, power systems, marine installations, outdoor cabinets, and heavy machinery in complex industrial settings.
