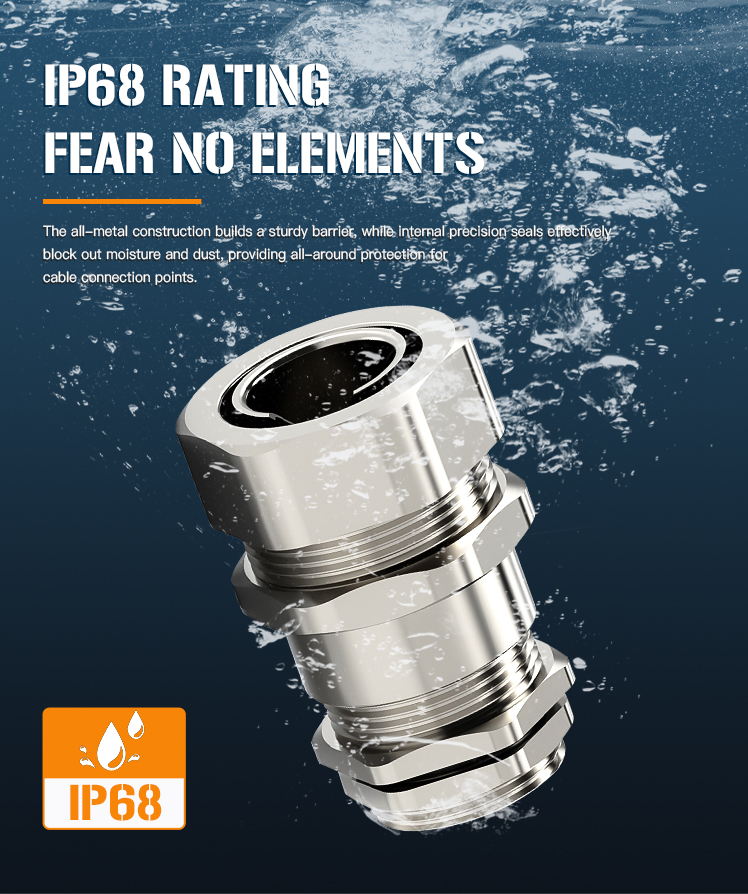

304/316L Stainless Steel Hose cable gland ensures secure, waterproof, and vibration-resistant connections for industrial electrical systems.
Certified for Global Markets：

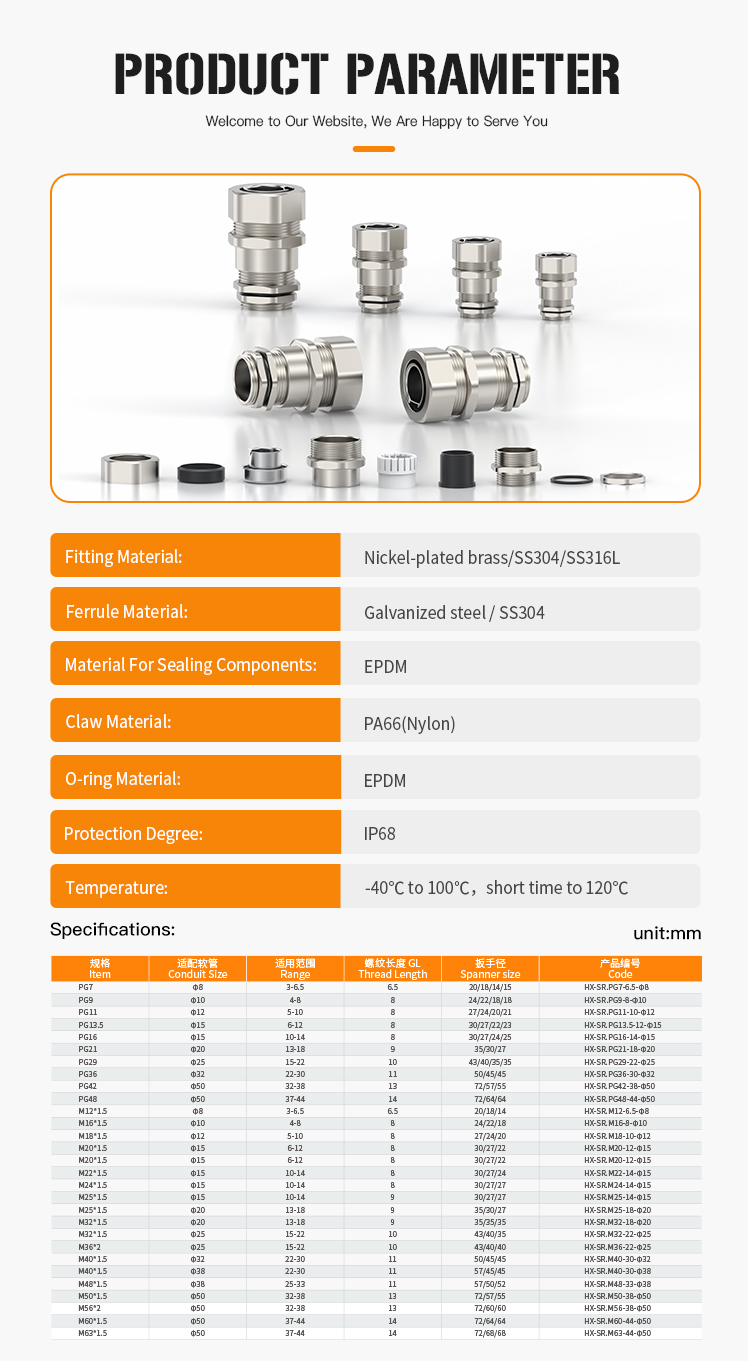

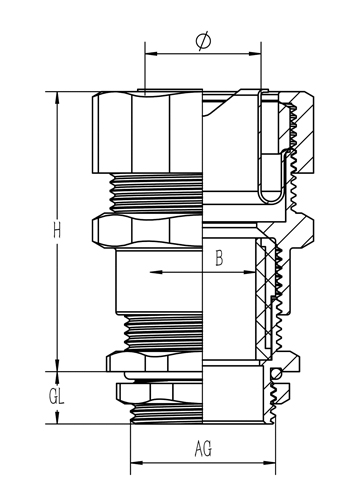

| Item | Conduit Size | Range | GL Thread Length | Spanner size | Code |
| PG7 | Φ8 | 3-6.5 | 6.5 | 20/18/14/15 | HX-SR.PG7-6.5-Φ8 |
| PG9 | Φ10 | 4-8 | 8 | 24/22/18/18 | HX-SR.PG9-8-Φ10 |
| PG11 | Φ12 | 5-10 | 8 | 27/24/20/21 | HX-SR.PG11-10-Φ12 |
| PG13.5 | Φ15 | 6-12 | 8 | 30/27/22/23 | HX-SR.PG13.5-12-Φ15 |
| PG16 | Φ15 | 10-14 | 8 | 30/27/24/25 | HX-SR.PG16-14-Φ15 |
| PG21 | Φ20 | 13-18 | 9 | 35/30/27 | HX-SR.PG21-18-Φ20 |
| PG29 | Φ25 | 15-22 | 10 | 43/40/35/35 | HX-SR.PG29-22-Φ25 |
| PG36 | Φ32 | 22-30 | 11 | 50/45/45 | HX-SR.PG36-30-Φ32 |
| PG42 | Φ50 | 32-38 | 13 | 72/57/55 | HX-5R.PG42-38-Φ50 |
| PG48 | Φ50 | 37-44 | 14 | 72/64/64 | HX-SR.PG48-44-Φ50 |
| M12*1.5 | Φ8 | 3-6.5 | 6.5 | 20/18/14 | HX-SR.M12-6.5-Φ8 |
| M16*1.5 | Φ10 | 4-8 | 8 | 24/22/18 | HX-SR.M16-8-Φ10 |
| M18*1.5 | Φ12 | 5-10 | 8 | 27/24/20 | HX-SR.M18-10-Φ12 |
| M20*1.5 | Φ15 | 6-12 | 8 | 30/27/22 | HX-SR.M20-12-Φ15 |
| M22*1.5 | Φ15 | 10-14 | 8 | 30/27/24 | HX-SR.M22-14-Φ15 |
| M25*1.5 | Φ20 | 13-18 | 9 | 35/30/27 | HX-SR.M25-18-Φ20 |
| M32*1.5 | Φ25 | 15-22 | 10 | 43/40/35 | HX-SR.M32-22-Φ25 |
| M40*1.5 | Φ32 | 22-30 | 11 | 50/45/45 | HX-SR.M40-30-Φ32 |
| M50*1.5 | Φ50 | 32-38 | 13 | 72/57/55 | HX-SR.M50-38-Φ50 |
| M63*1.5 | Φ50 | 37-44 | 14 | 72/68/68 | HX-SR.M63-44-Φ50 |
