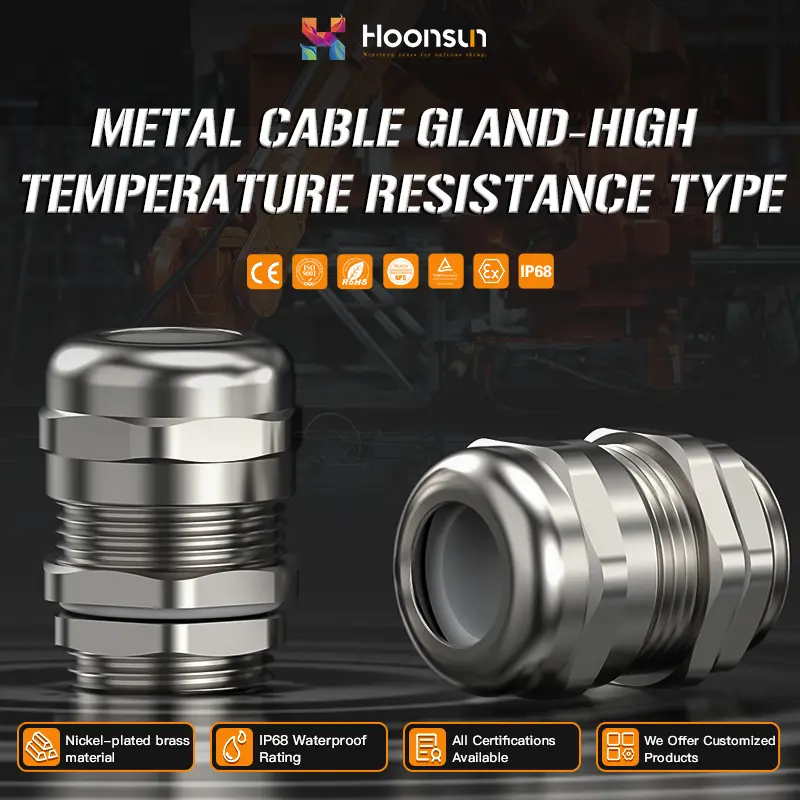

China NGS High Temperature Resistance Metal Cable Gland with UL and IP68 Manufacturer, Supplier

The NGS High Temperature Resistance Metal Cable Gland is made of 316 stainless steel and can be used in an extreme temperature range of -60â„ƒÂ to +250â„ƒ.

Certified for Global Marketsï¼š

æœªæ ‡é¢˜-1.png

Send Inquiry

Product Description

✓

Product Highlights

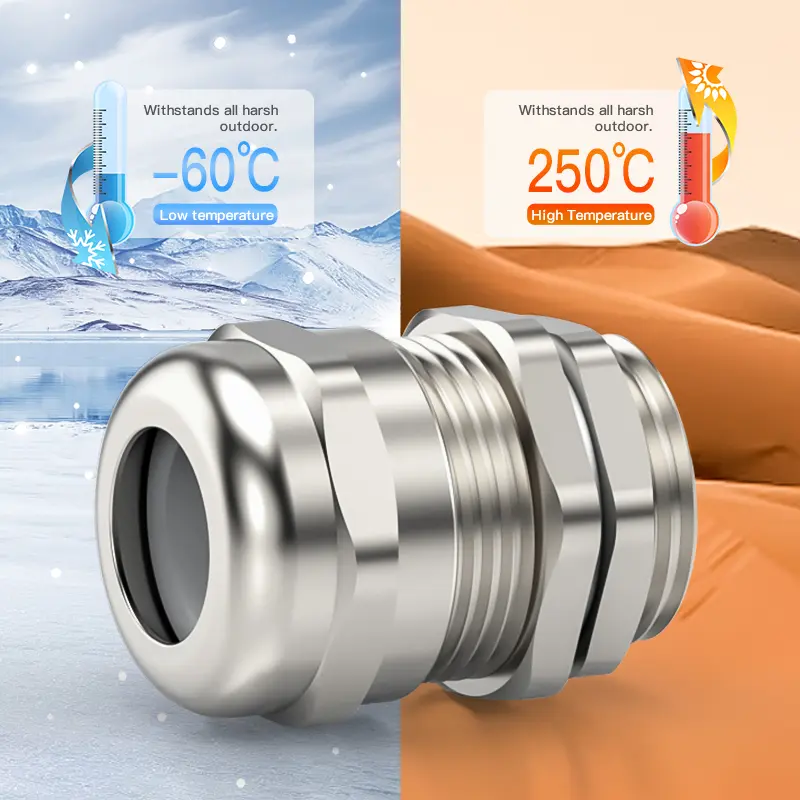

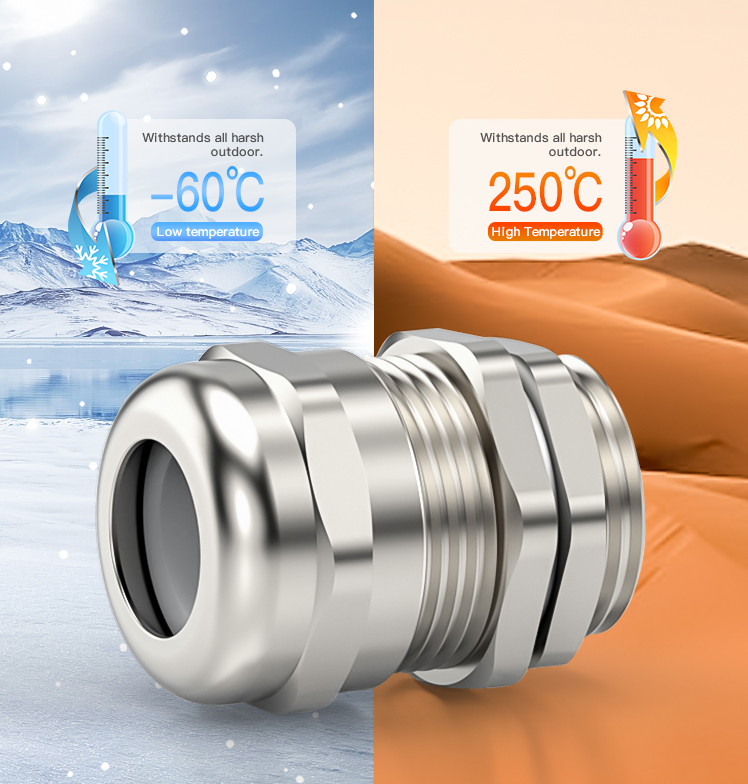

● Exceptional high-temperature performance, reliably operating from -60°C to +250°C

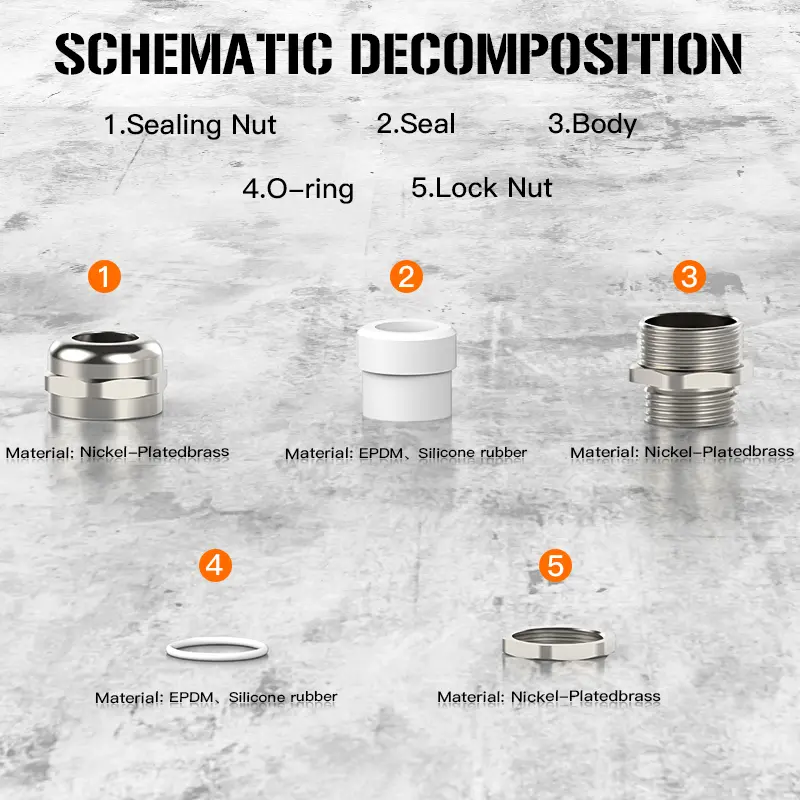

● Constructed from 316 stainless steel with specialized heat-resistant seals (silicone or fluororubber)

● IP68-rated protection against dust, oil, and steam ingress

● Supports PG, NPT, and Metric threads for easy global installation

● Fully complies with IEC and CE standards

⚙

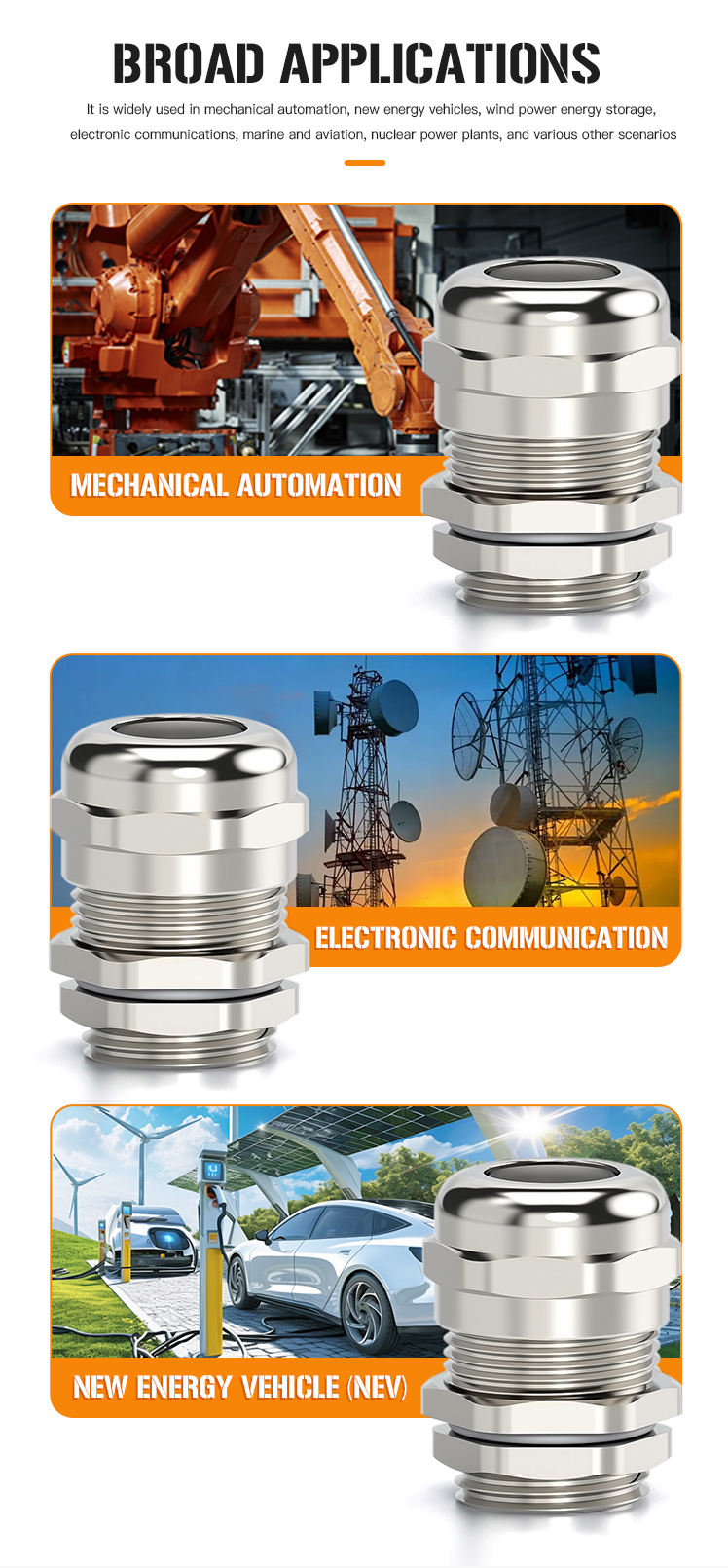

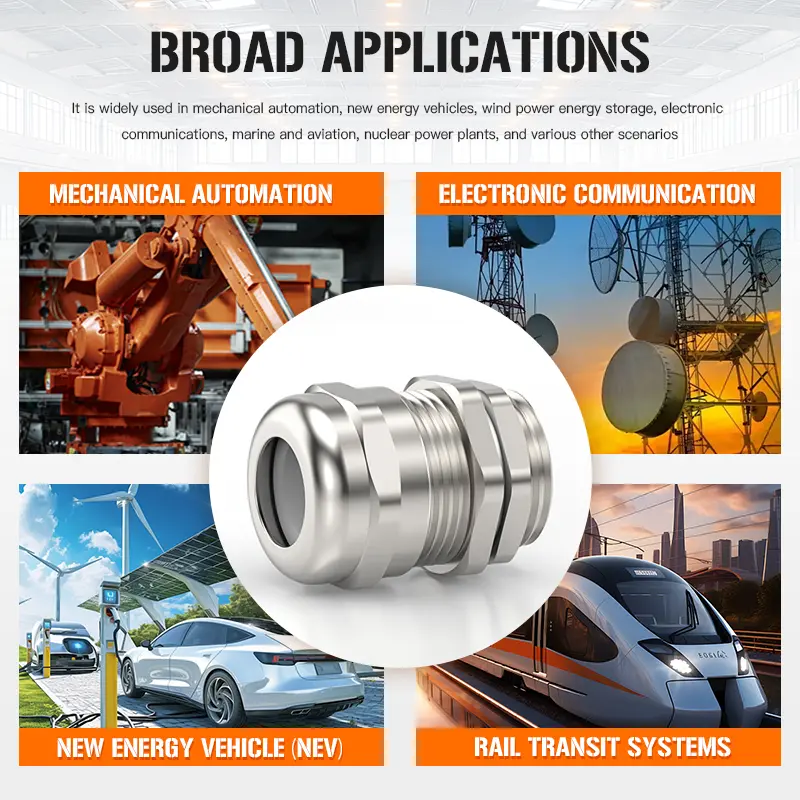

Applications

Industrial Furnaces - Provides reliable sealing in high-heat industrial thermal processing environments.

Metallurgical Systems - Withstands extreme temperatures and harsh conditions of metal processing equipment.

Energy Plants - Ensures connection integrity and safety in power generation facilities.

Automation Equipment - Protects cable connections in machinery operating under continuous thermal stress.

★

Key Benefits

▶ Maintains sealing integrity under continuous high-temperature operation
▶ Offers thermal stability, corrosion resistance, and mechanical durability
▶ Resists oxidation and thermal expansion for extended service life
▶ Ensures electrical safety and reliability with minimal maintenance

📋

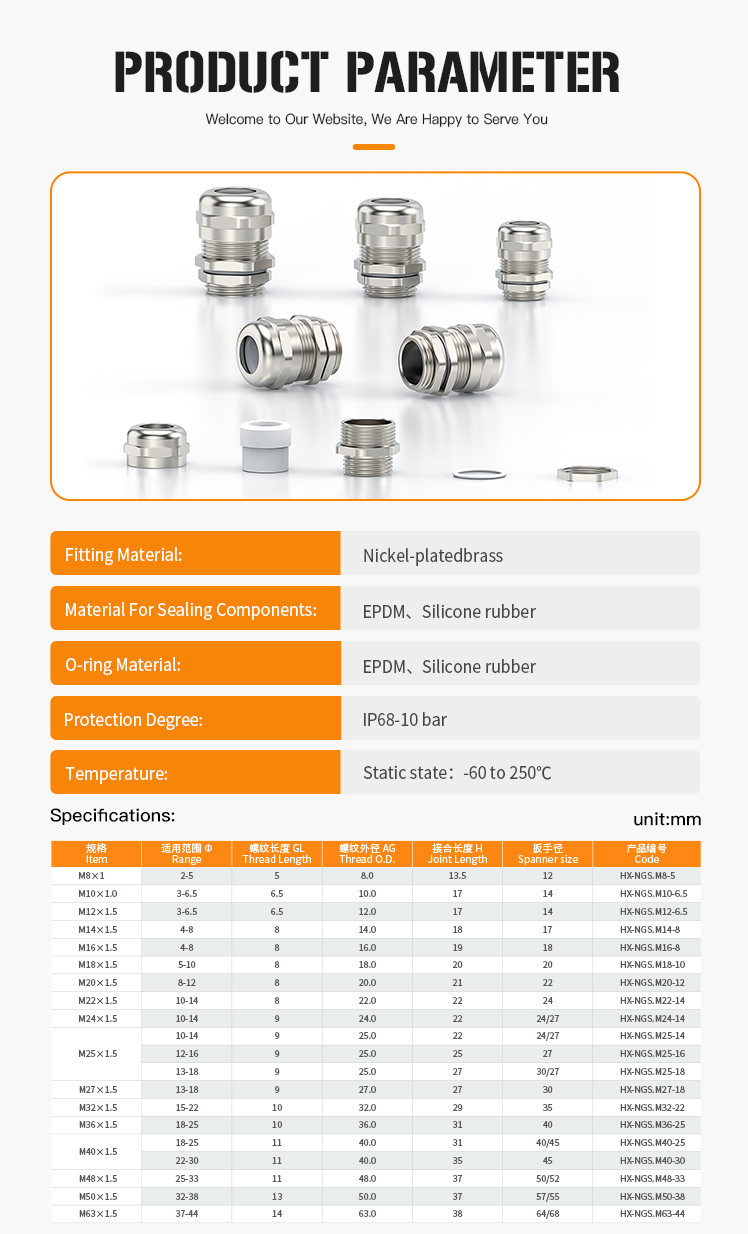

Product Parameters

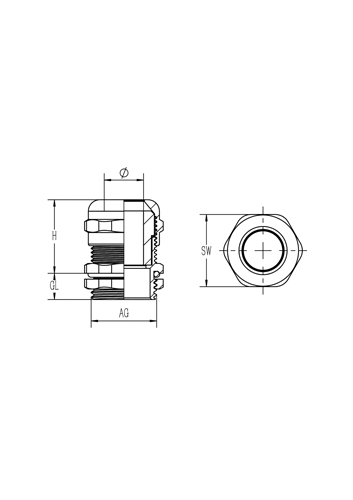

High Temperature Resistance Metal Cable Gland Parameters

unit: mm

Item	Range	GL Thread Length	AG Thread O.D.	H Joint Length	Spanner size	Code
M8×1	2-5	5	8.0	13.5	12	HX-NGS.M8-5
M10×1.0	3-6.5	6.5	10.0	17	14	HX-NGS.M10-6.5
M12×1.5	3-6.5	6.5	12.0	17	14	HX-NGS.M12-6.5
M14×1.5	4-8	8	14.0	18	17	HX-NGS.M14-8
M16×1.5	4-8	8	16.0	19	18	HX-NGS.M16-8
M18×1.5	5-10	8	18.0	20	20	HX-NGS.M18-10
M20×1.5	8-12	8	20.0	21	22	HX-NGS.M20-12
M22×1.5	10-14	8	22.0	22	24	HX-NGS.M22-14
M24×1.5	10-14	9	24.0	22	24/27	HX-NGS.M24-14
M25×1.5	10-18	9	25.0	22-27	24-30	HX-NGS.M25 Series
M27×1.5	13-18	9	27.0	27	30	HX-NGS.M27-18
M32×1.5	15-22	10	32.0	29	35	HX-NGS.M32-22
M36×1.5	18-25	10	36.0	31	40	HX-NGS.M36-25
M40×1.5	18-30	11	40.0	31-35	40/45	HX-NGS.M40 Series
M48×1.5	25-33	11	48.0	37	50/52	HX-NGS.M48-33
M50×1.5	32-38	13	50.0	37	57/55	HX-NGS.M50-38
M63×1.5	37-44	14	63.0	38	64/68	HX-NGS.M63-44

🖼

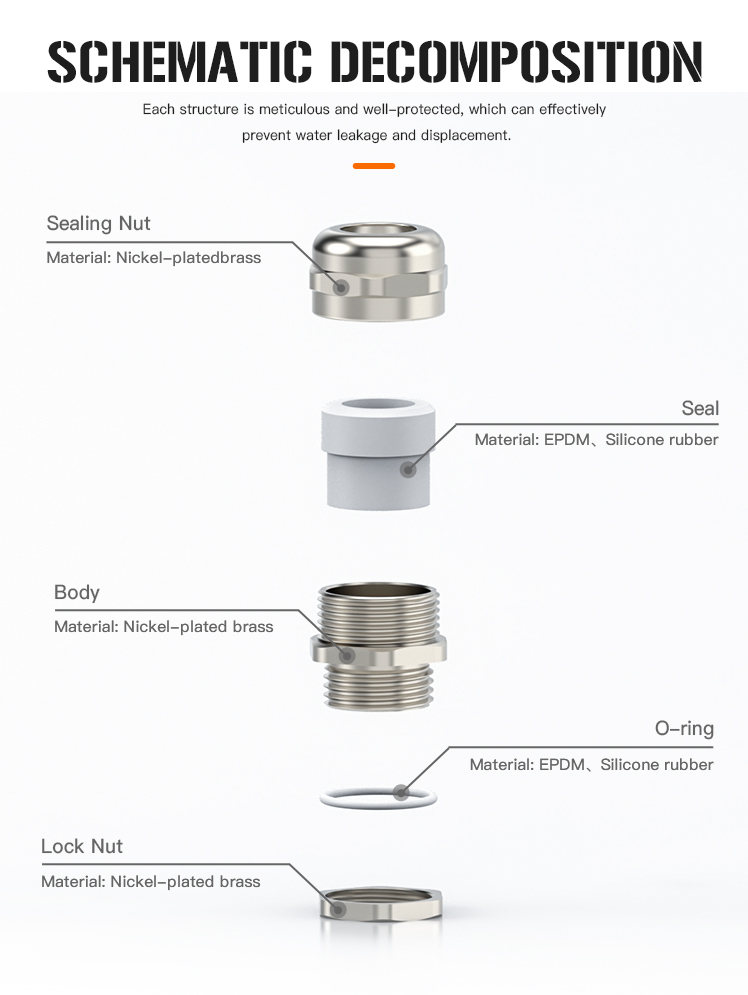

Detailed Images

Frequently Asked Questions

Q1: What is the operating temperature range for these cable glands? A: These high-temperature resistance metal cable glands can reliably operate in extreme conditions ranging from -60°C to +250°C.

Q2: What materials are used in the construction? A: The glands are made from high-quality 316 stainless steel and feature specialized heat-resistant seals made of silicone or fluororubber.

Q3: Are these cable glands waterproof and dustproof? A: Yes, they are IP68-rated, providing excellent protection against dust, oil, and steam ingress.

Q4: Which thread types are available? A: We support a wide range of global standards including PG, NPT, and Metric threads to ensure easy installation.

Q5: What certifications do these products hold? A: Our high-temperature cable glands fully comply with international IEC and CE safety and quality standards.

Q6: In which industries are these glands most commonly used? A: They are ideal for industrial furnaces, metallurgical systems, power plants, and high-heat automation machinery.
