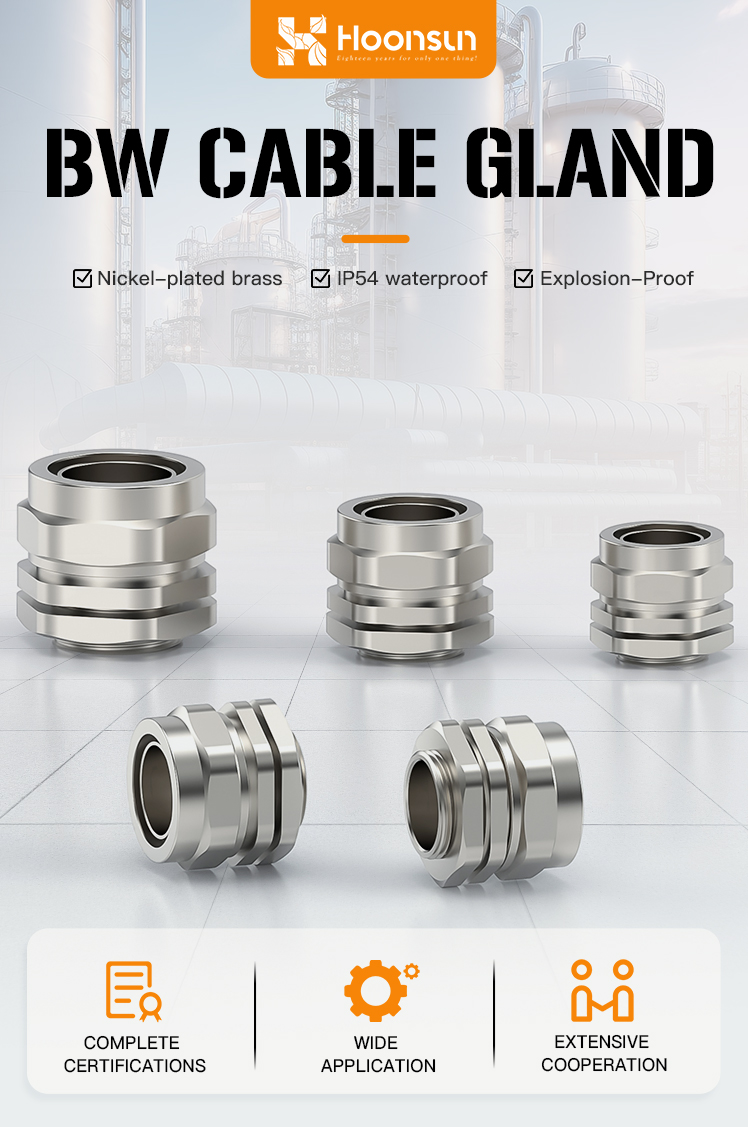

The BW Cable Gland features excellent explosion-proof performance, reliable sealing effect and convenient installation method. It has passed UL certification and IP68 waterproof rating certification.
Certified for Global Markets：
Engineered to contain internal ignitions and block flammable gases or particles, preventing flame transmission in hazardous atmospheres.
Integrated dual-sealing mechanism with high-grade materials provides complete protection against dust and prolonged water immersion.

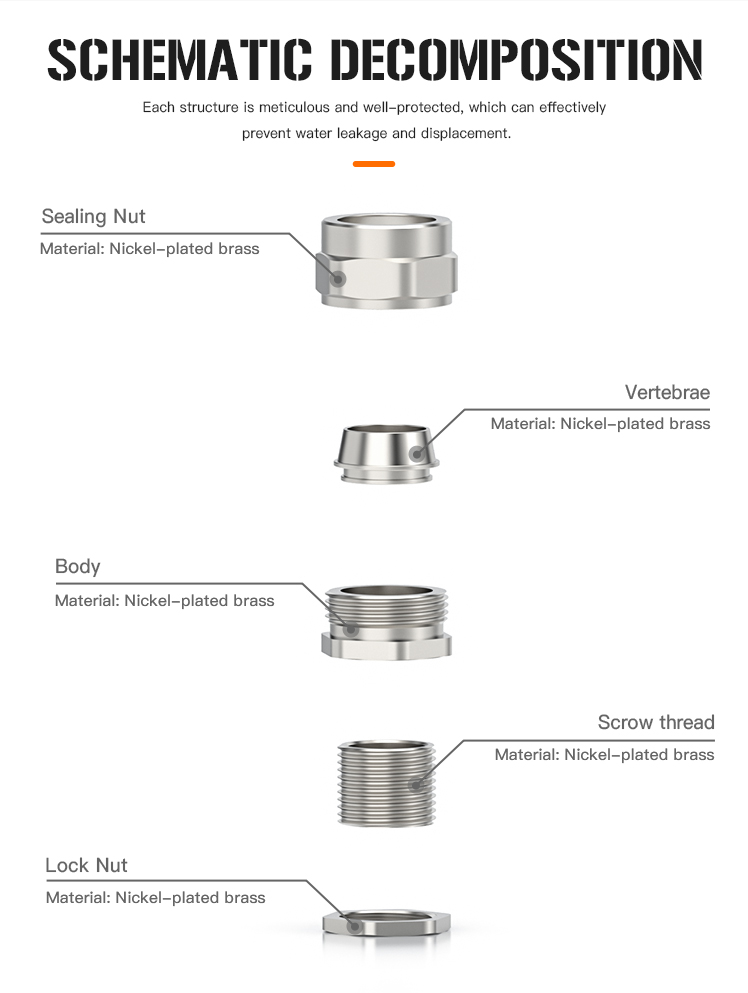

Multi-component clamping system ensures a secure grip on various cables, withstanding mechanical stresses like pulling and twisting.
Streamlined structure allows for quick assembly and disassembly without the need for specialized or complex tools.

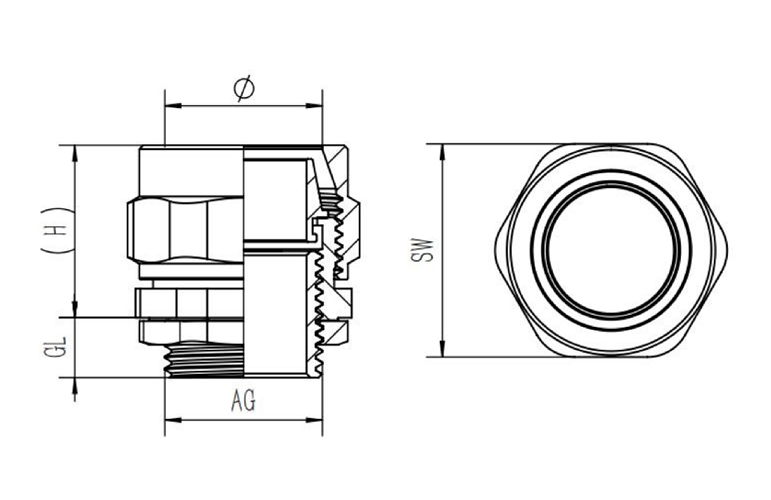

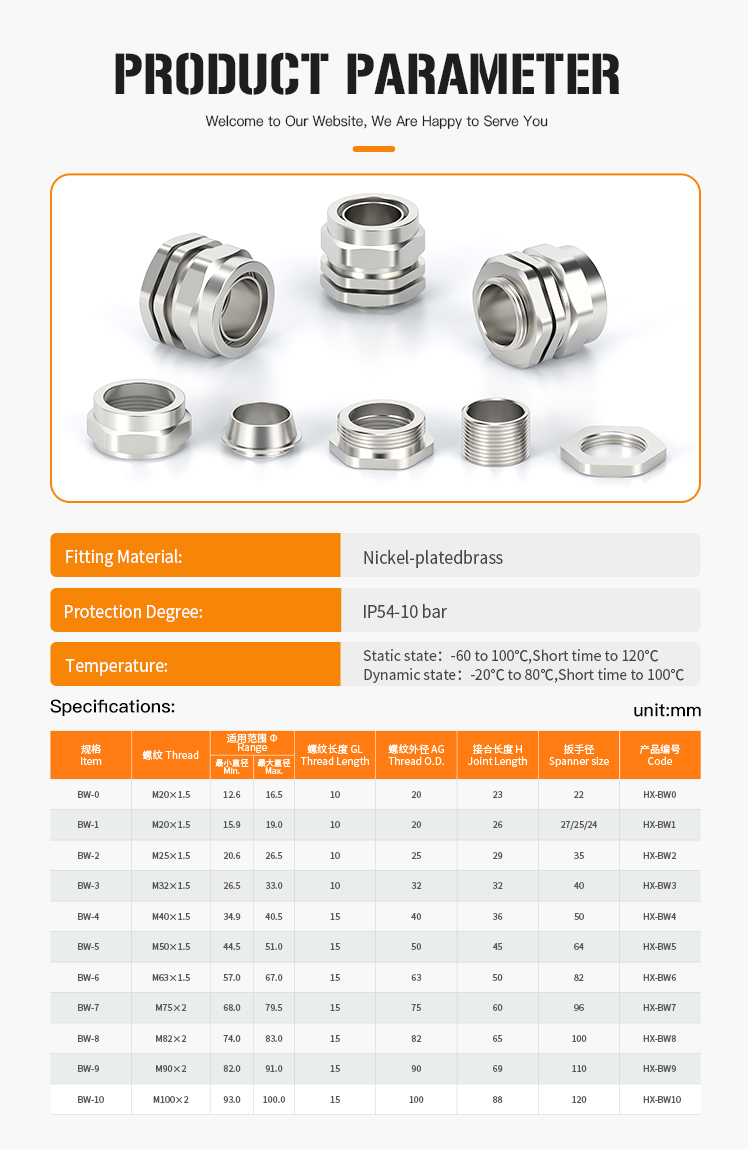

Unit: mm
| Item | Thread | Diameter Min. | Diameter Max. | GL Thread Length | AG Thread O.D. | H Joint Length | Spanner Size | Code |
|---|---|---|---|---|---|---|---|---|
| BW-0 | M20×1.5 | 12.6 | 16.5 | 10 | 20 | 23 | 22 | HX-BWO |
| BW-1 | M20×1.5 | 15.9 | 19.0 | 10 | 20 | 26 | 27/25/24 | HX-BW1 |
| BW-2 | M25×1.5 | 20.6 | 26.5 | 10 | 25 | 29 | 35 | HX-BW2 |
| BW-3 | M32×1.5 | 26.5 | 33.0 | 10 | 32 | 32 | 40 | HX-BW3 |
| BW-4 | M40×1.5 | 34.9 | 40.5 | 15 | 40 | 36 | 50 | HX-BW4 |
| BW-5 | M50×1.5 | 44.5 | 51.0 | 15 | 50 | 45 | 64 | HX-BW5 |
| BW-6 | M63×1.5 | 57.0 | 67.0 | 15 | 63 | 50 | 82 | HX-BW6 |
| BW-7 | M75×2 | 68.0 | 79.5 | 15 | 75 | 60 | 96 | HX-BW7 |
| BW-8 | M82×2 | 74.0 | 83.0 | 15 | 82 | 65 | 100 | HX-BW8 |
| BW-9 | M90×2 | 82.0 | 91.0 | 15 | 90 | 69 | 110 | HX-BW9 |
| BW-10 | M100×2 | 93.0 | 100.0 | 15 | 100 | 88 | 120 | HX-BW10 |
A1: The advanced design contains internal ignitions by blocking flammable gases and particles, preventing the transmission of flames to the surrounding hazardous atmosphere.
A2: This cable gland achieves an IP68 rating, meaning it offers complete protection against dust and can withstand prolonged immersion in water.
A3: No, it features a streamlined structure and user-friendly components that allow for quick and straightforward assembly without specialized tools.
A4: Yes, the multi-component clamping system provides a vibration-resistant grip that protects the connection integrity under mechanical stress.

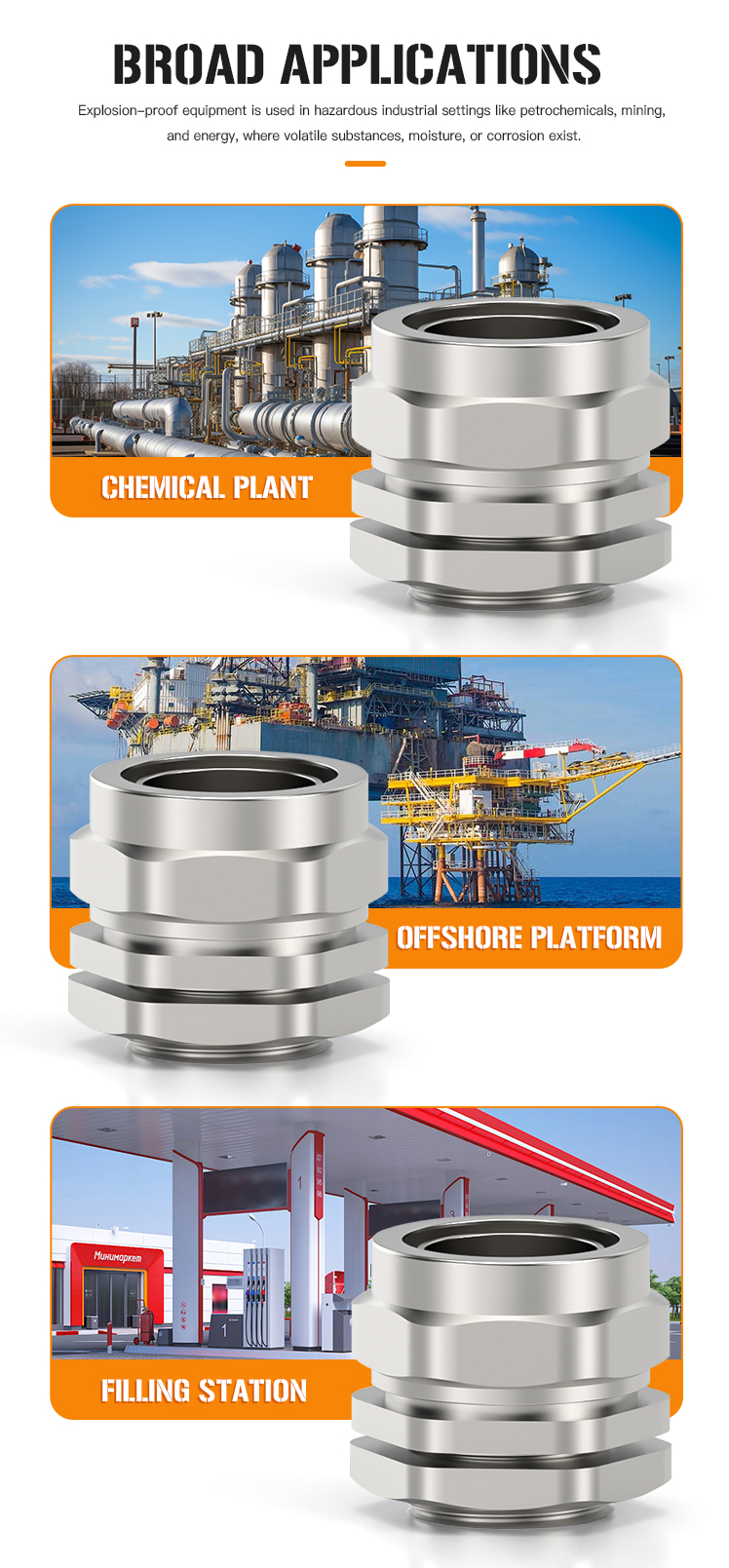

A5: It is widely used in oil and gas, chemical plants, and infrastructure projects where secure cable fixation and environmental protection are critical.
A6: The gland uses precision-made components and high-grade materials to guarantee exceptional long-term sealing and corrosion resistance.
