BWL Cable Gland Is Designed to Meet IP68 and UL Standards, Aimed at Achieving Outstanding Explosion-proof Sealing Performance and Stable Cable Fixation Function in Harsh Environments.
Certified for Global Markets：
Certified to IP68 and UL standards for superior airtight and waterproof integrity.
Advanced clamping mechanism protects cables against severe mechanical stress.
High resistance to dust, moisture, harsh chemicals, and corrosive elements.
Tool-free design simplifies the installation process for maximum efficiency.
Enhanced Explosion Protection: Effectively isolates internal sparks and blocks flammable gases, reducing ignition risks in volatile settings.
Long-Term Reliability: Resists erosion from moisture and chemicals, extending service life and lowering maintenance costs.
Error-Resistant Installation: User-friendly design prevents sealing failures caused by improper assembly.

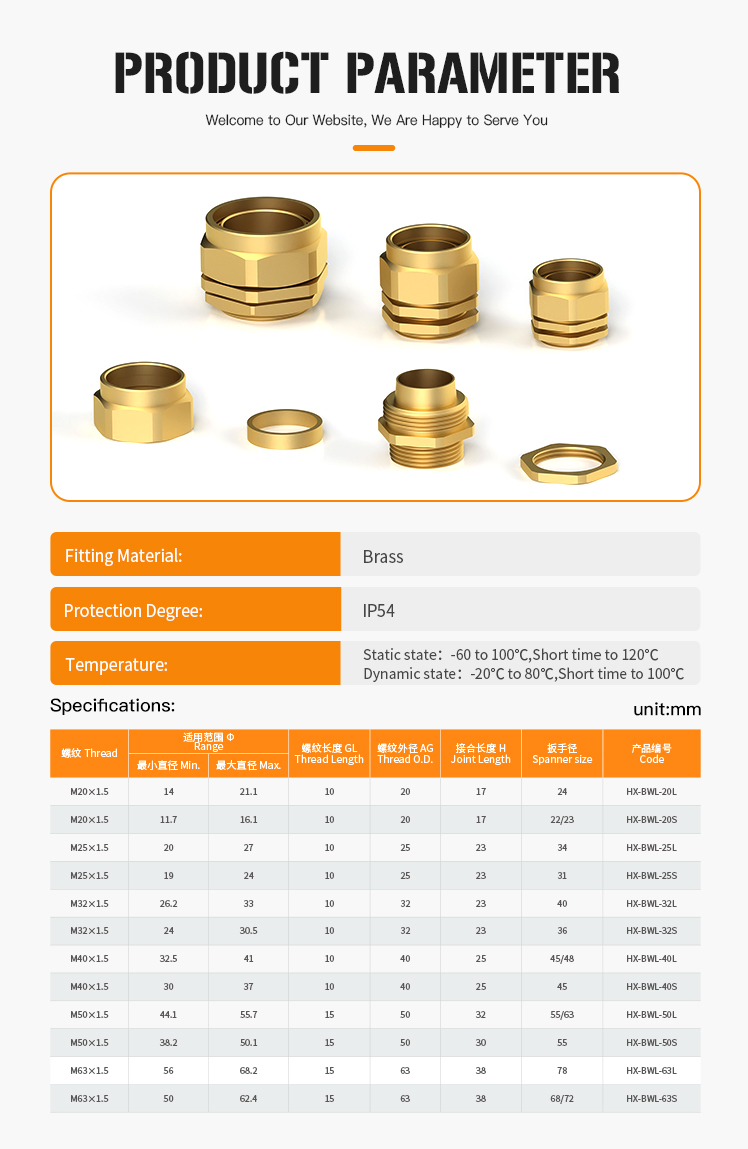

| Thread | Range | GL Thread Length | AG Thread O.D. | H Joint Length | Spanner Size | Code | |
|---|---|---|---|---|---|---|---|
| Min. Dia. | Max. Dia. | ||||||
| M20×1.5 | 14 | 21.1 | 10 | 20 | 17 | 24 | HX-BWL-20L |
| M20×1.5 | 11.7 | 16.1 | 10 | 20 | 17 | 22/23 | HX-BWL-20S |
| M25×1.5 | 20 | 27 | 10 | 25 | 23 | 34 | HX-BWL-25L |
| M25×1.5 | 19 | 24 | 10 | 25 | 23 | 31 | HX-BWL-25S |
| M32×1.5 | 26.2 | 33 | 10 | 32 | 23 | 40 | HX-BWL-32L |
| M32×1.5 | 24 | 30.5 | 10 | 32 | 23 | 36 | HX-BWL-32S |
| M40×1.5 | 32.5 | 41 | 10 | 40 | 25 | 45/48 | HX-BWL-40L |
| M40×1.5 | 30 | 37 | 10 | 40 | 25 | 45 | HX-BWL-40S |
| M50×1.5 | 44.1 | 55.7 | 15 | 50 | 32 | 55/63 | HX-BWL-50L |
| M50×1.5 | 38.2 | 50.1 | 15 | 50 | 30 | 55 | HX-BWL-50S |
| M63×1.5 | 56 | 68.2 | 15 | 63 | 38 | 78 | HX-BWL-63L |
| M63×1.5 | 50 | 62.4 | 15 | 63 | 38 | 68/72 | HX-BWL-63S |
A: The BWL series cable glands are dual-certified to IP68 for water/dust ingress and UL standards for safety and quality performance.

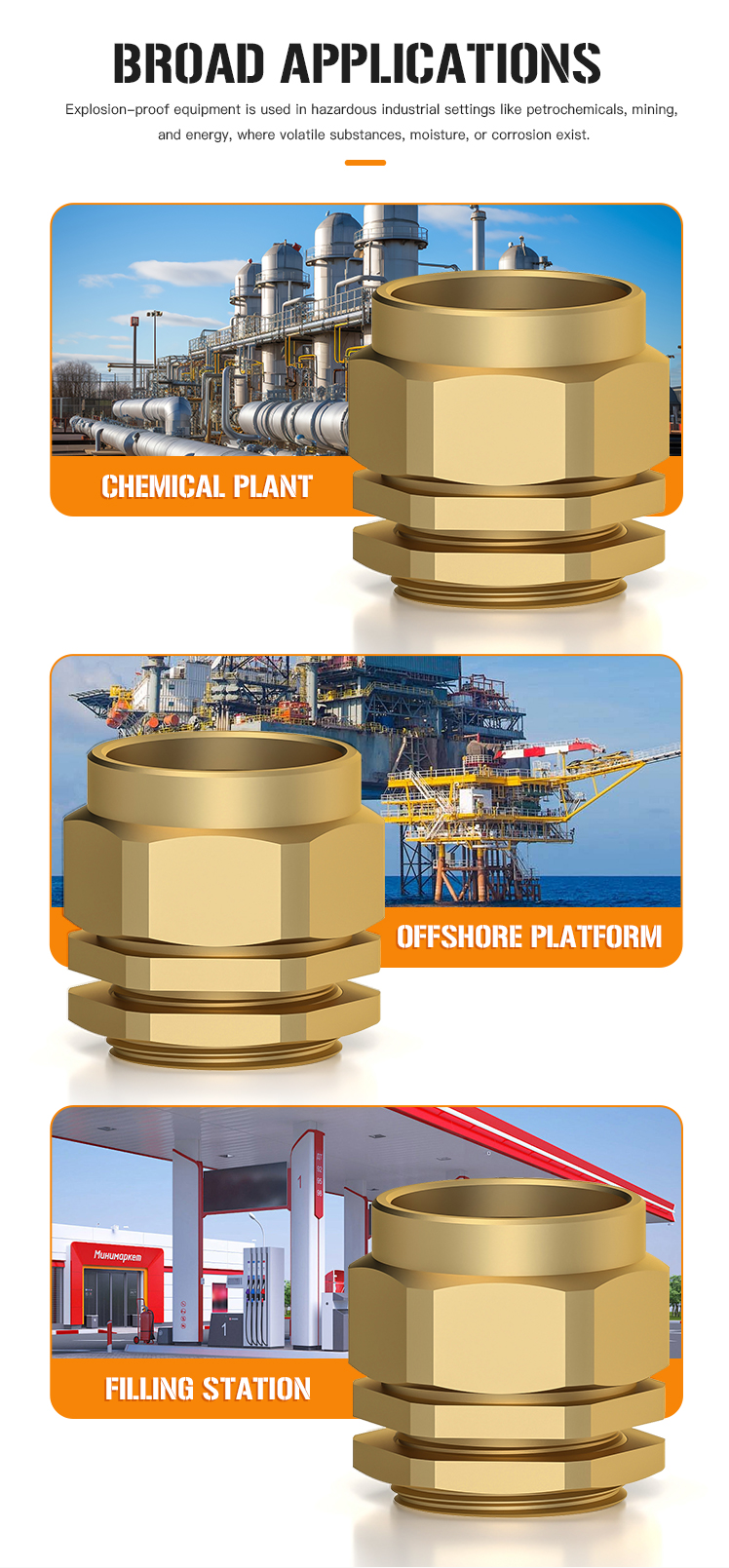

A: Yes, they are specifically designed for hazardous industrial zones such as oil platforms and chemical plants to isolate internal sparks and block flammable gases.
A: No, these cable glands feature a tool-free assembly design, which simplifies the installation process and reduces deployment time.

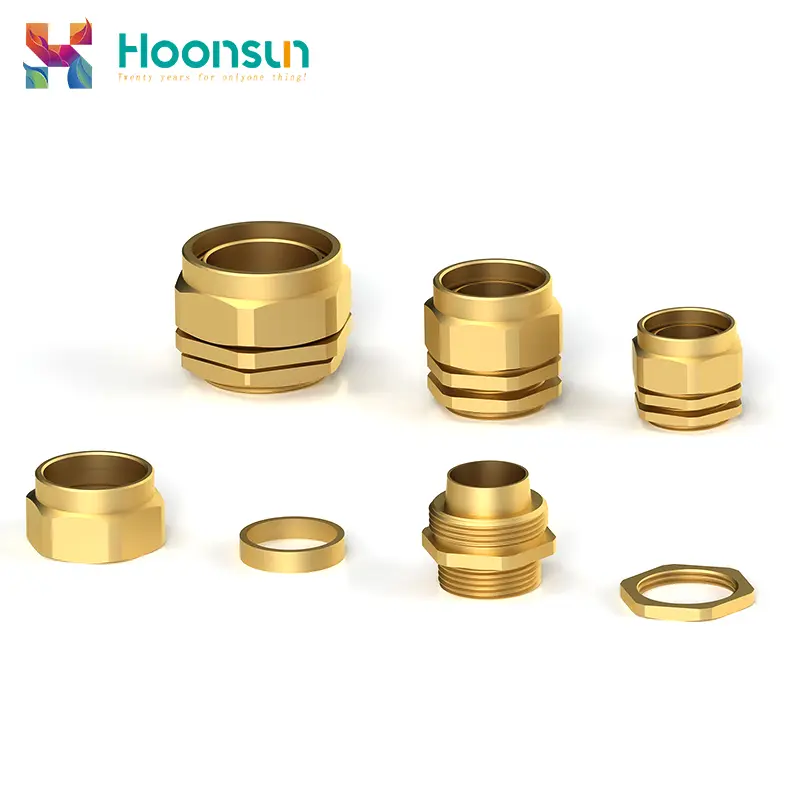

A: We offer a comprehensive range of sizes from M20 to M63, with both small (S) and large (L) diameter options for various cable specifications.
A: They incorporate a robust clamping mechanism that ensures cable stability even in environments with high mechanical vibration or stress.
A: Absolutely. The materials used are resistant to moisture, dust, and various corrosive chemicals, making them ideal for harsh industrial climates.
