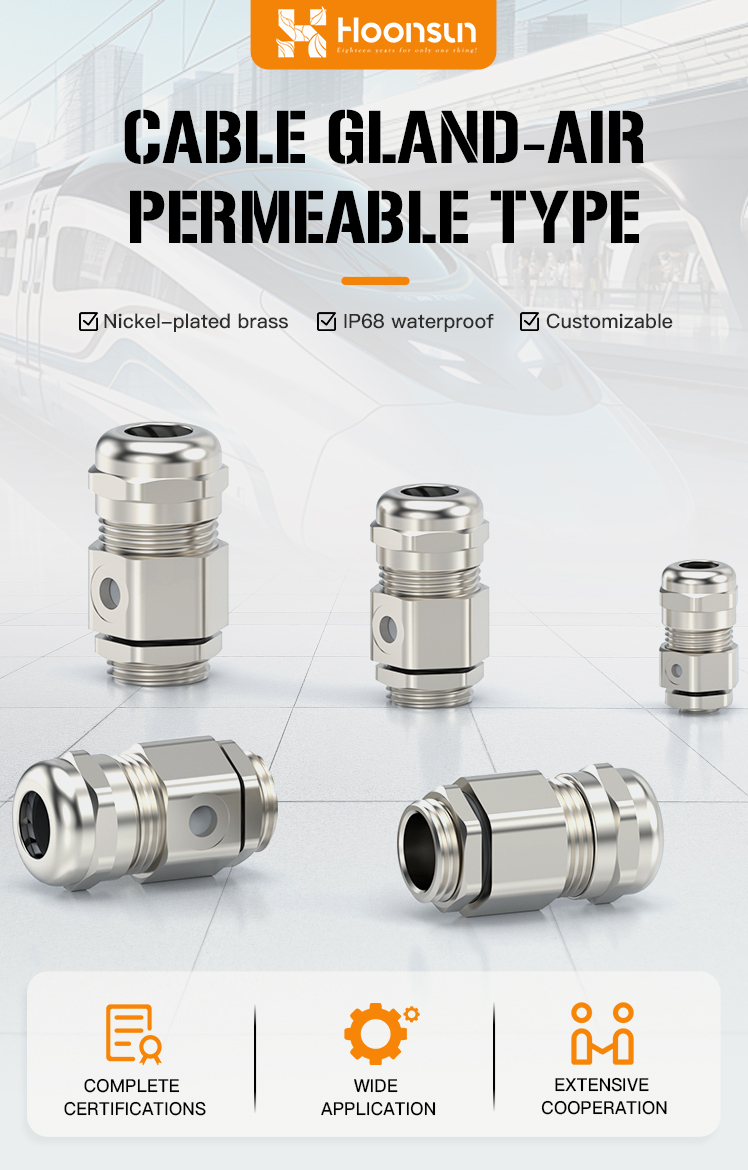

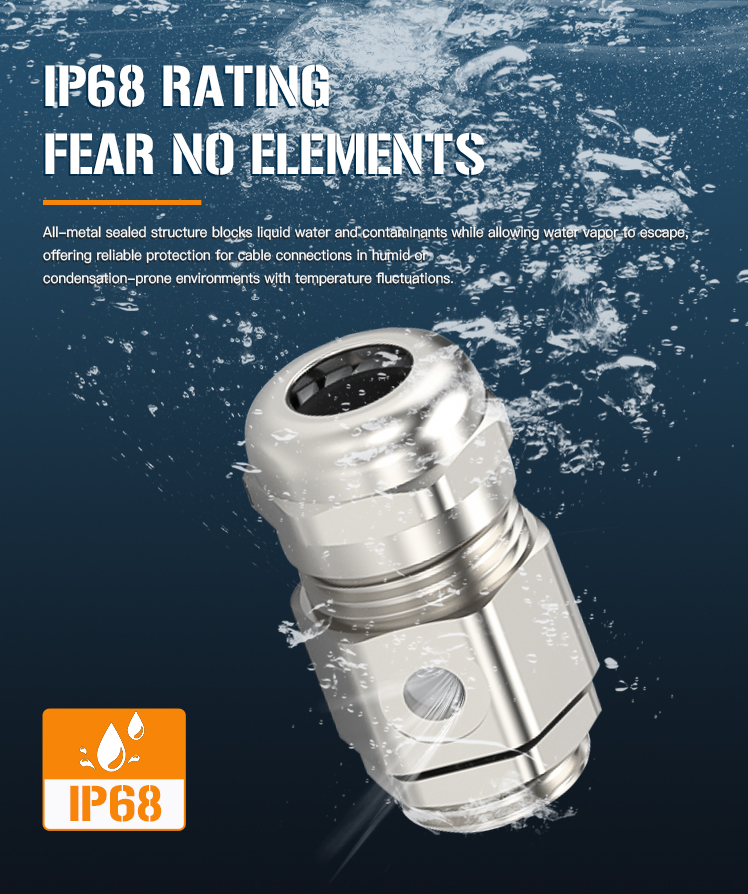

IP68 and REACH Certified breathable Cable Gland Type can ensure pressure balance and effectively prevent condensation.
Certified for Global Markets：

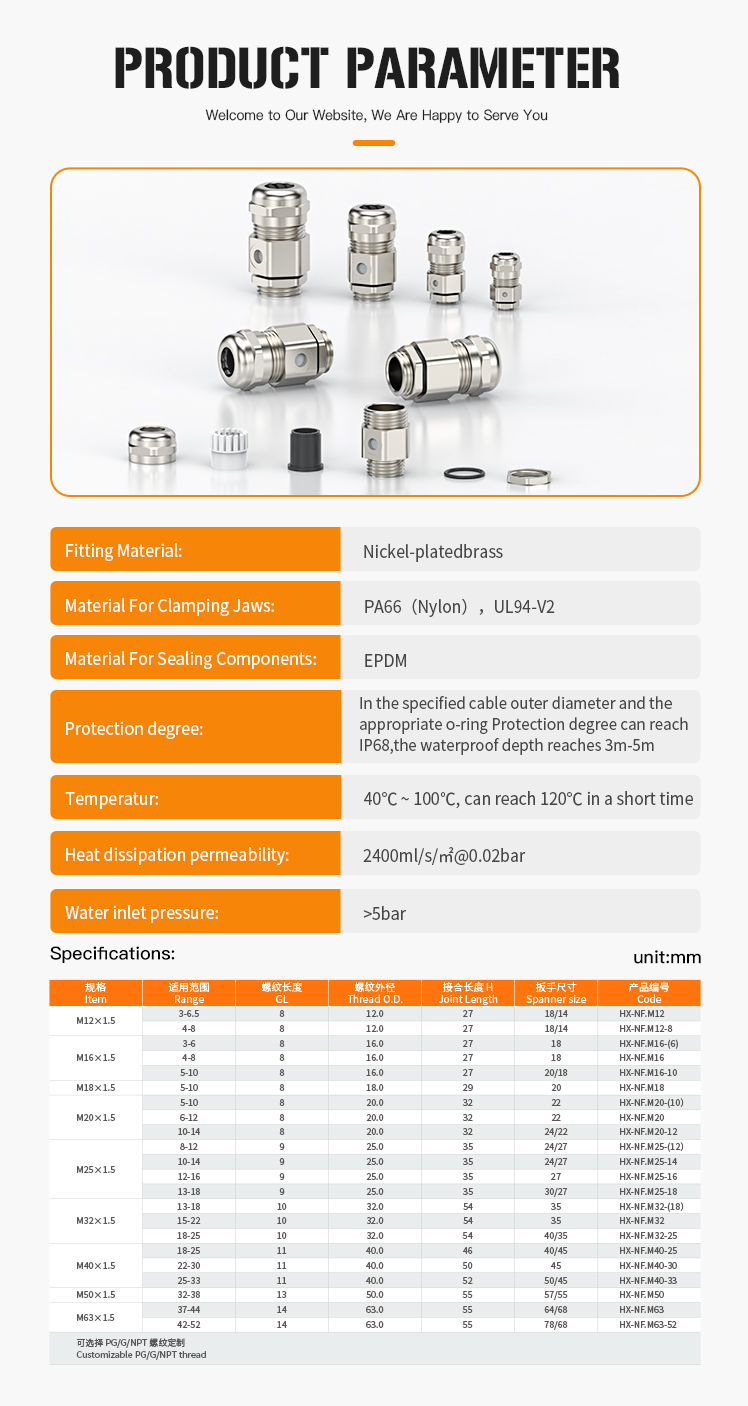

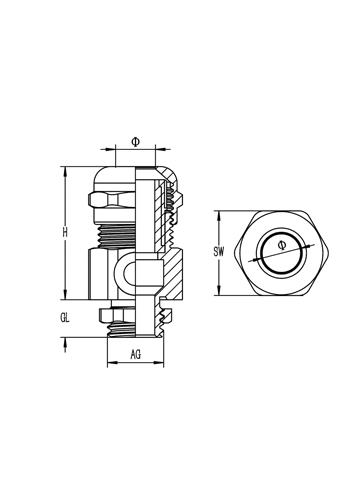

| Item | Range | GL | Thread O.D. | H Joint Length | Spanner Size | Code |
|---|---|---|---|---|---|---|
| M12×1.5 | 3-6.5 | 8 | 12.0 | 27 | 18/14 | HX-NF.M12 |
| M12×1.5 | 4-8 | 8 | 12.0 | 27 | 18/14 | HX-NF.M12-8 |
| M16×1.5 | 3-6 | 8 | 16.0 | 27 | 18 | HX-NF.M16-(6) |
| M16×1.5 | 4-8 | 8 | 16.0 | 27 | 18 | HX-NF.M16 |
| M16×1.5 | 5-10 | 8 | 16.0 | 27 | 20/18 | HX-NF.M16-10 |
| M18×1.5 | 5-10 | 8 | 18.0 | 29 | 20 | HX-NF.M18 |
| M20×1.5 | 5-10 | 8 | 20.0 | 32 | 22 | HX-NF.M20-(10) |
| M20×1.5 | 6-12 | 8 | 20.0 | 32 | 22 | HX-NF.M20 |
| M20×1.5 | 10-14 | 8 | 20.0 | 32 | 24/22 | HX-NF.M20-12 |
| M25×1.5 | 8-12 | 9 | 25.0 | 35 | 24/27 | HX-NF.M25-(12) |
| M25×1.5 | 10-14 | 9 | 25.0 | 35 | 24/27 | HX-NF.M25-14 |
| M25×1.5 | 12-16 | 9 | 25.0 | 35 | 27 | HX-NF.M25-16 |
| M25×1.5 | 13-18 | 9 | 25.0 | 35 | 30/27 | HX-NF.M25-18 |
| M32×1.5 | 13-18 | 10 | 32.0 | 54 | 35 | HX-NF.M32-(18) |
| M32×1.5 | 15-22 | 10 | 32.0 | 54 | 35 | HX-NF.M32 |
| M32×1.5 | 18-25 | 10 | 32.0 | 54 | 40/35 | HX-NF.M32-25 |
| M40×1.5 | 18-25 | 11 | 40.0 | 46 | 40/45 | HX-NF.M40-25 |
| M40×1.5 | 22-30 | 11 | 40.0 | 50 | 45 | HX-NF.M40-30 |
| M40×1.5 | 25-33 | 11 | 40.0 | 52 | 50/45 | HX-NF.M40-33 |
| M50×1.5 | 32-38 | 13 | 50.0 | 55 | 57/55 | HX-NF.M50 |
| M63×1.5 | 37-44 | 14 | 63.0 | 55 | 64/68 | HX-NF.M63 |
| M63×1.5 | 42-52 | 14 | 63.0 | 55 | 78/68 | HX-NF.M63-52 |
| Customizable PG/G/NPT thread | ||||||
