China IP68 and UL Certified Metal Vent Plug Suppliers, Factories

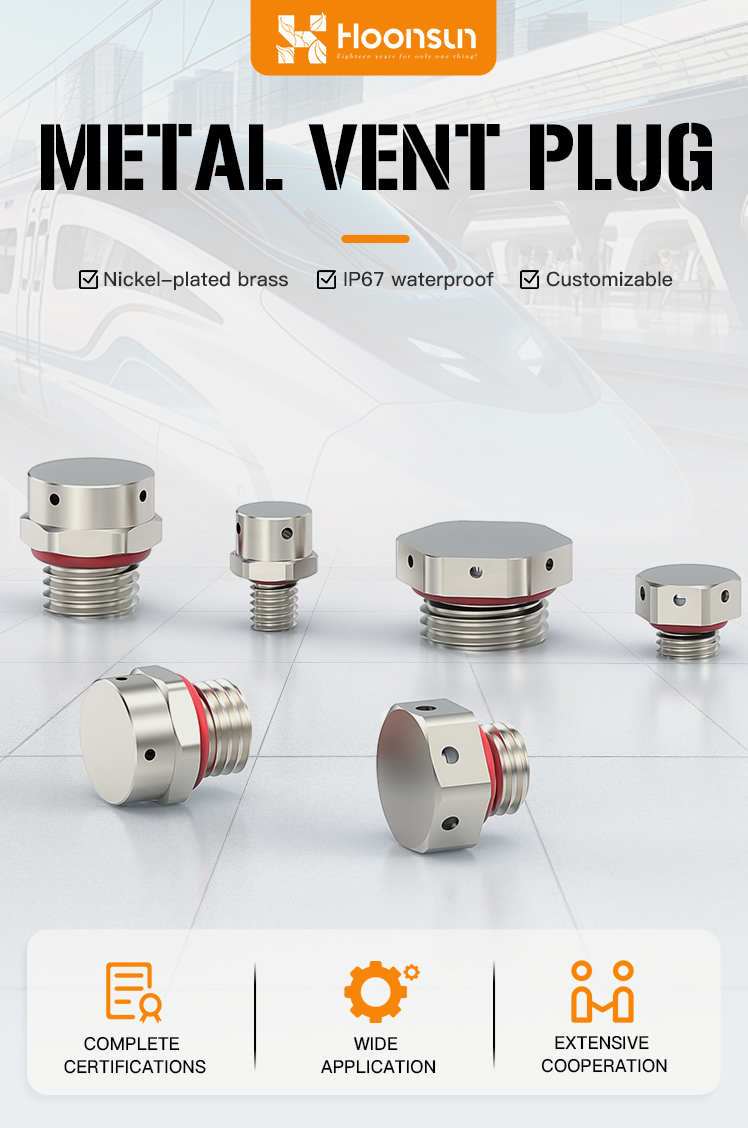

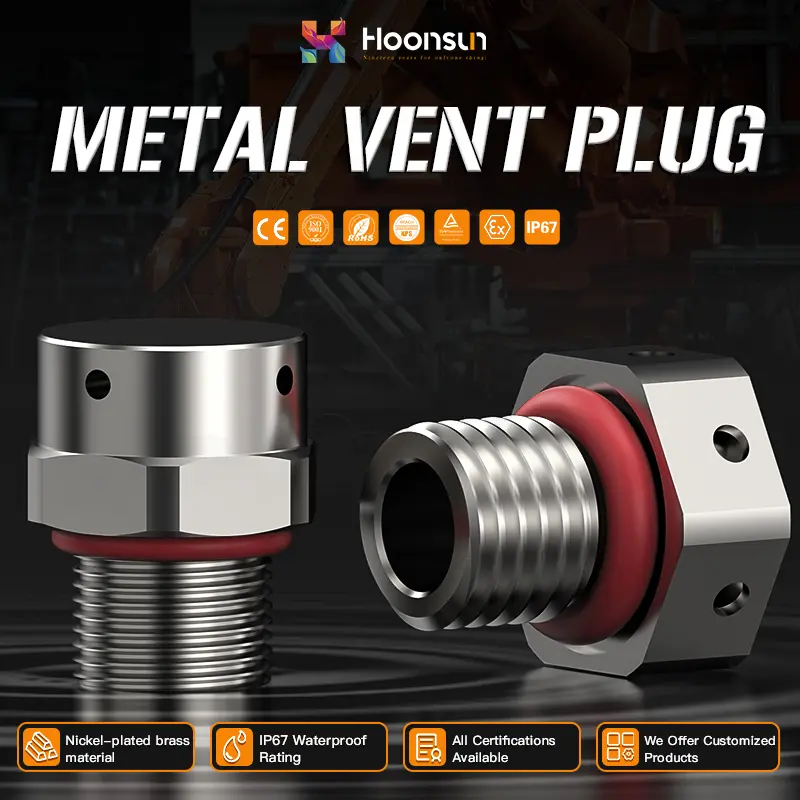

The Metal Vent Plug provides professional ventilation for electrical cabinets/automotive systems, maintaining IP68 level protection against moisture and particles.

Certified for Global Marketsï¼š

æœªæ ‡é¢˜-1.png

Send Inquiry

Product Description

★ Product Highlights

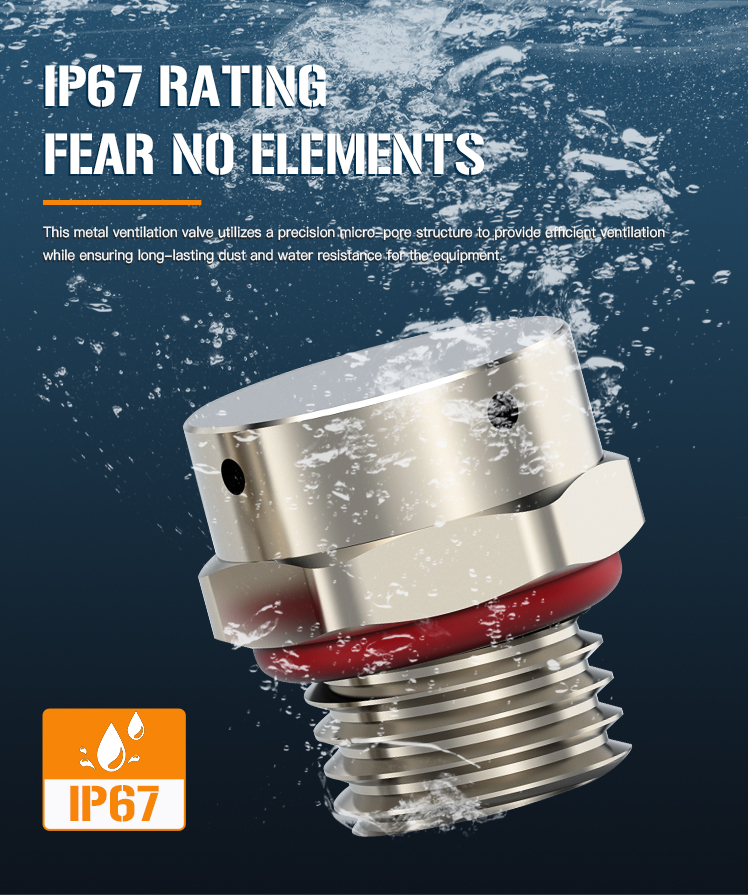

✓ IP67-IP68 Certified for superior waterproof and dustproof performance.
✓ UL, CE, and RoHS Certified, ensuring international safety and quality standards.

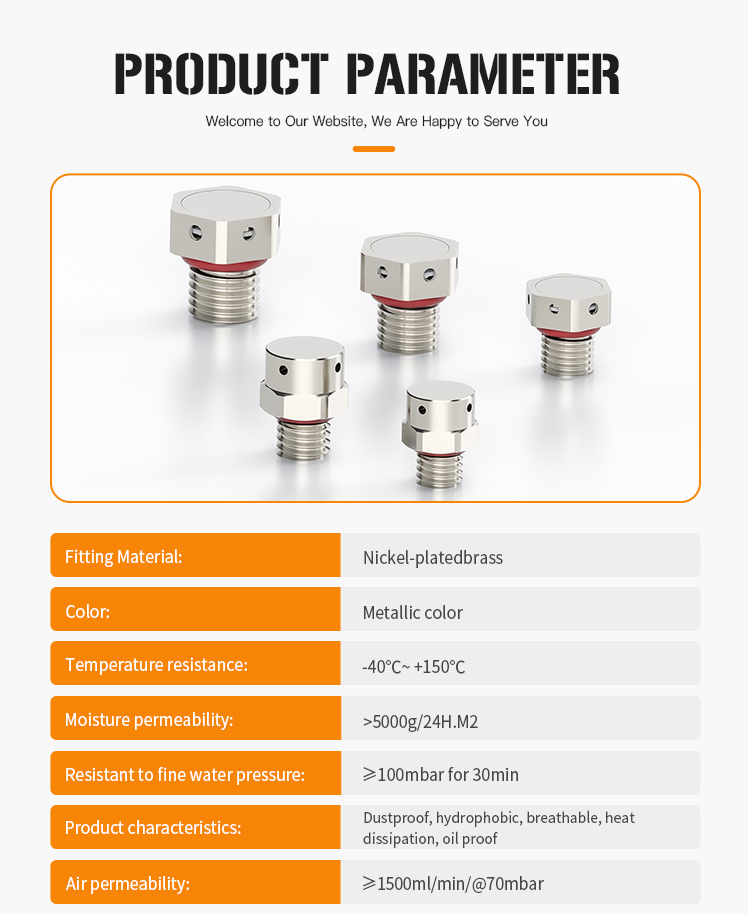

✓ Constructed from durable nickel-plated brass or stainless steel for excellent corrosion resistance.

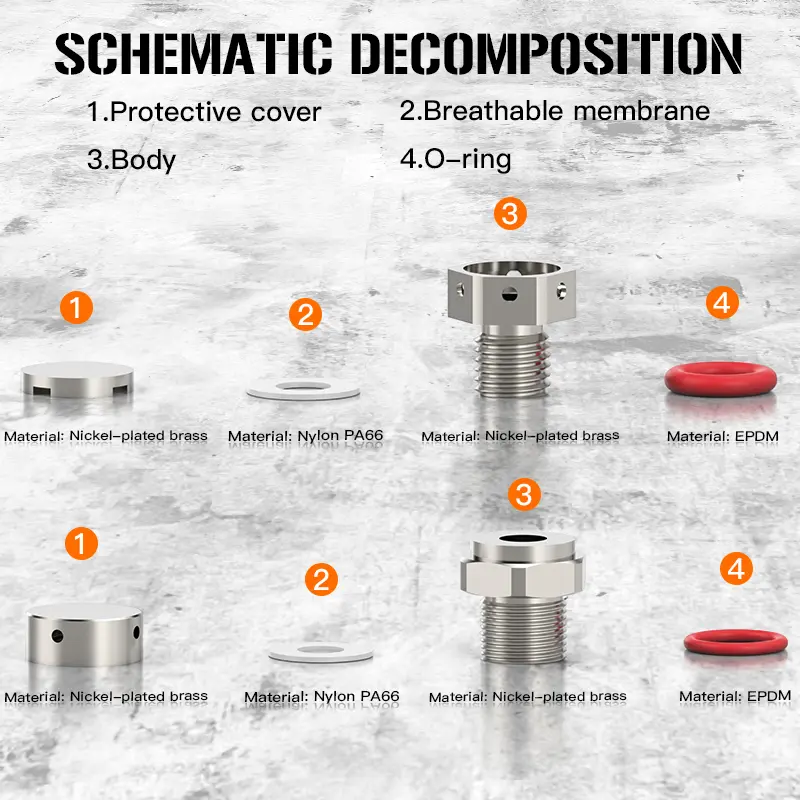

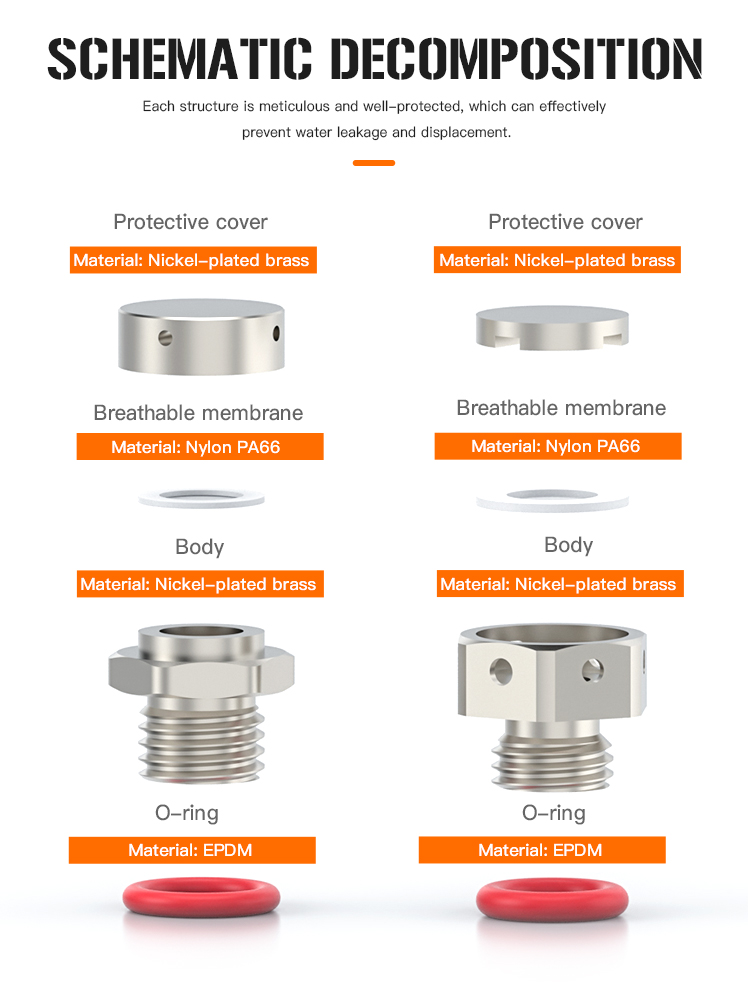

✓ Features advanced microporous membrane technology for reliable air exchange.
✓ Easy to install with compatibility for both Metric and PG threads.

♦ Key Benefits

Pressure Balance Maintains optimal air pressure inside sealed enclosures.

Superior Protection Effectively blocks water, dust, and contaminants.

Prevents Condensation Reduces moisture buildup to protect internal components.

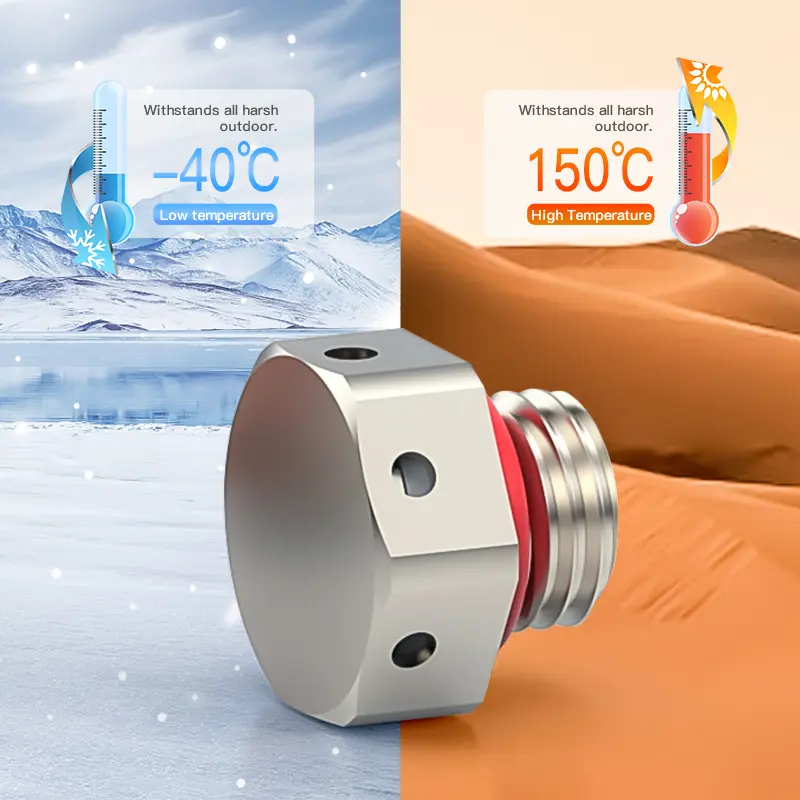

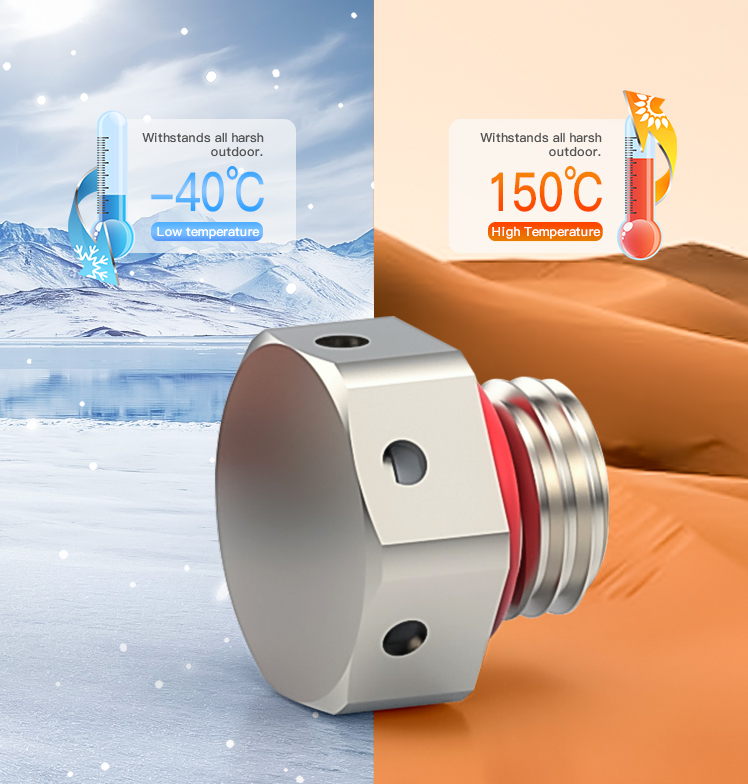

Long-Term Durability Resists corrosion, UV exposure, and extreme temperatures.

Extended Equipment Lifespan Ensures stable performance and reliability.

● Applications

Electrical Control Cabinets

Outdoor Lighting Systems

Automotive Electronics

Renewable Energy Installations

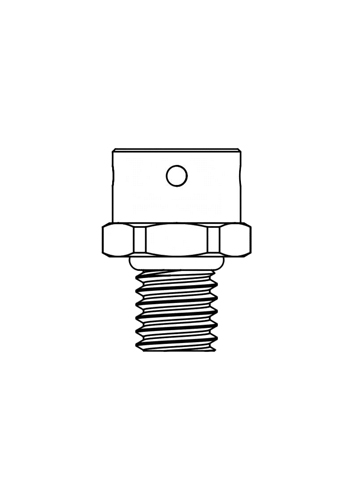

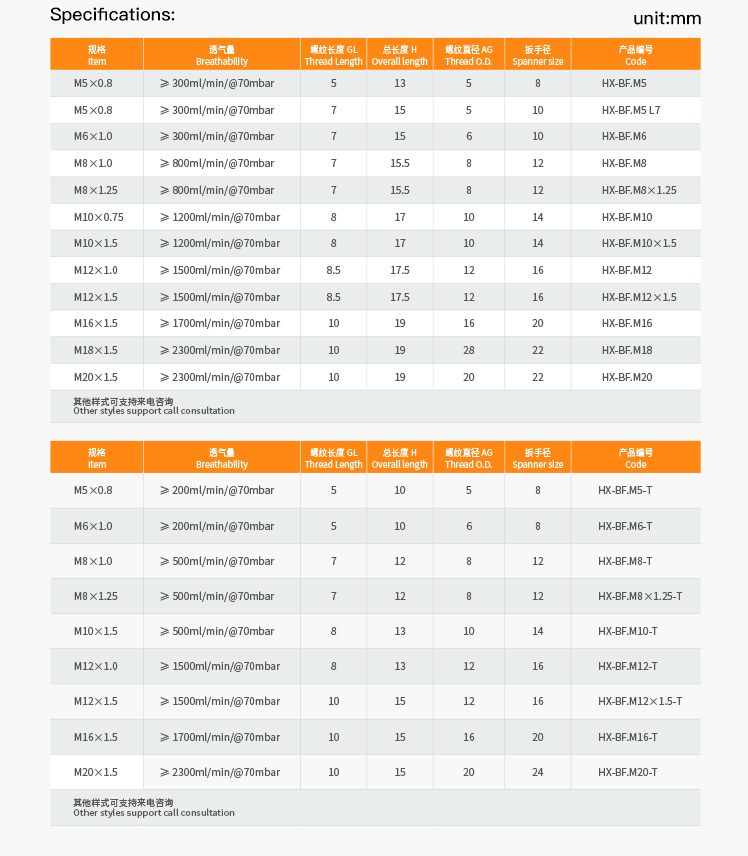

⚙ Technical Parameters

unit: mm

Item	Breathablity	GL Thread Length	H Overall length	AG Thread O.D.	Spanner size	Code
M5×0.8	≥300ml/min/@70mbar	5	13	5	8	HX-BF.M5
M5×0.8	≥300ml/min/@70mbar	7	15	5	10	HX-BF.M5 L7
M6×1.0	≥300ml/min/@70mbar	7	15	6	10	HX-BF.M6
M8×1.0	≥800ml/min/@70mbar	7	15.5	8	12	HX-BF.M8
M8×1.25	≥800ml/min/@70mbar	7	15.5	8	12	HX-BF.M8×1.25
M10×0.75	≥1200ml/min/@70mbar	8	17	10	14	HX-BF.M10
M10×1.5	≥1200ml/min/@70mbar	8	17	10	14	HX-BF.M10×1.5
M12×1.0	≥1500ml/min/@70mbar	8.5	17.5	12	16	HX-BF.M12
M12×1.5	≥1500ml/min/@70mbar	8.5	17.5	12	16	HX-BF.M12×1.5
M16×1.5	≥1700ml/min/@70mbar	10	19	16	20	HX-BF.M16
M18×1.5	≥2300ml/min/@70mbar	10	19	28	22	HX-BF.M18
M20×1.5	≥2300ml/min/@70mbar	10	19	20	22	HX-BF.M20

Item	Breathablity	GL Thread Length	H Overall length	AG Thread O.D.	Spanner size	Code
M5×0.8	≥200ml/min/@70mbar	5	10	5	8	HX-BF.M5-T
M6×1.0	≥200ml/min/@70mbar	5	10	6	8	HX-BF.M6-T
M8×1.0	≥500ml/min/@70mbar	7	12	8	12	HX-BF.M8-T
M8×1.25	≥500ml/min/@70mbar	7	12	8	12	HX-BF.M8×1.25-T
M10×1.5	≥500ml/min/@70mbar	8	13	10	14	HX-BF.M10-T
M12×1.0	≥1500ml/min/@70mbar	8	13	12	16	HX-BF.M12-T
M12×1.5	≥1500ml/min/@70mbar	10	15	12	16	HX-BF.M12×1.5-T
M16×1.5	≥1700ml/min/@70mbar	10	15	16	20	HX-BF.M16-T
M20×1.5	≥2300ml/min/@70mbar	10	15	20	24	HX-BF.M20-T

Note: Other styles available upon inquiry.

🖼 Detailed Images

Frequently Asked Questions

1. What is the waterproof rating of these metal vent plugs? The vent plugs are certified with IP67 and IP68 ratings, ensuring superior protection against water submersion and dust ingress.

2. Which materials are available for the vent plugs? They are typically constructed from high-quality nickel-plated brass or stainless steel for maximum durability and corrosion resistance.

3. How does the vent plug prevent condensation? It utilizes advanced microporous membrane technology that allows air exchange to balance internal pressure while blocking liquid and moisture.

4. Are these products certified for international use? Yes, our vent plugs are UL, CE, and RoHS certified, meeting stringent international safety and environmental standards.

5. What thread types are compatible with these plugs? The vent plugs are designed for easy installation and are compatible with both Metric and PG thread standards.

6. Can these be used in extreme outdoor environments? Absolutely. They are designed to resist UV exposure, extreme temperatures, and corrosive elements, making them ideal for outdoor lighting and renewable energy systems.
