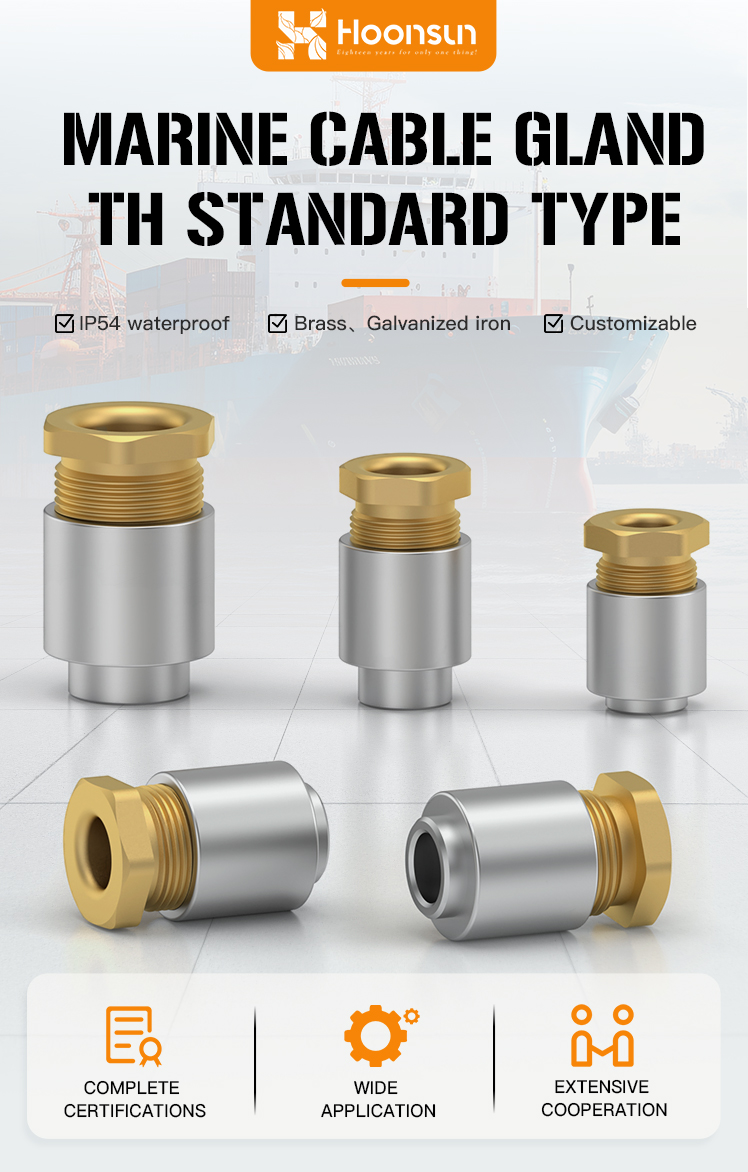

China IP68 and UL Marine Cable Gland TH Standard Type Factories, Factory

This Marine Cable Gland TH Standard Type is specially designed for harsh marine environments, featuring excellent waterproof sealing performance and long-lasting reliability.

Certified for Global Marketsï¼š

æœªæ ‡é¢˜-1.png

Send Inquiry

Product Description

Product Highlights

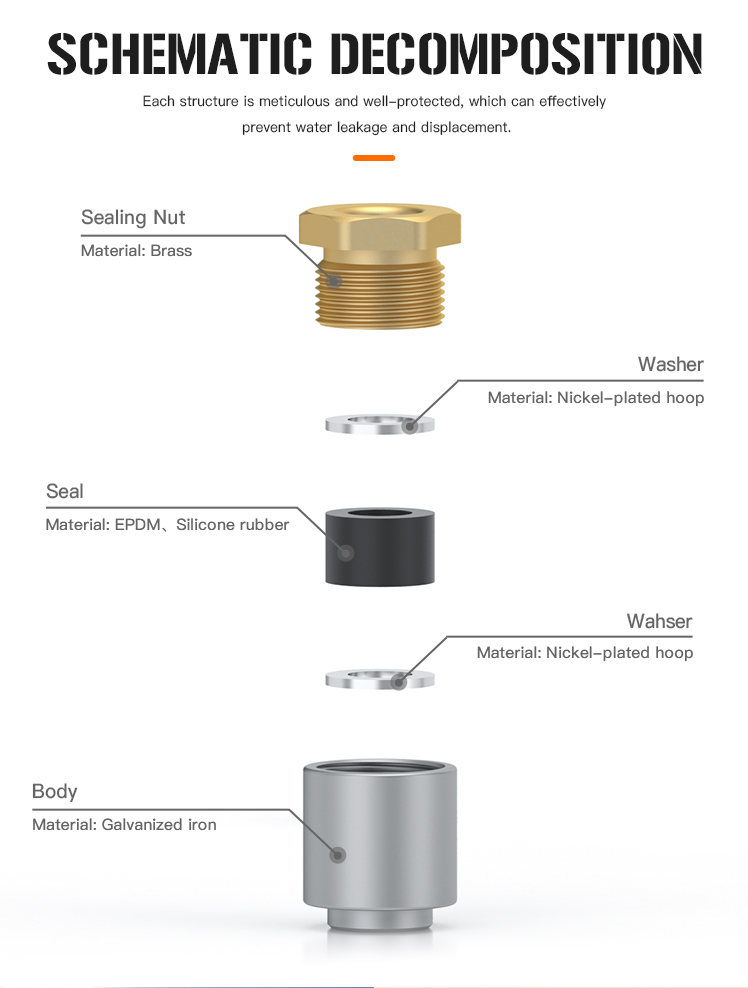

✓ Constructed from nickel-plated brass or stainless steel for superior corrosion resistance in salt-laden environments.

✓ Achieves up to IP68 protection level, ensuring a completely sealed connection against water, dust, and oil.

✓ Stable performance across a wide thermal range from -40℃ to 120℃.

✓ Offers multiple thread specifications (e.g., M12×1, M16×1.5) and accommodates cable diameters from 5mm to 50mm.

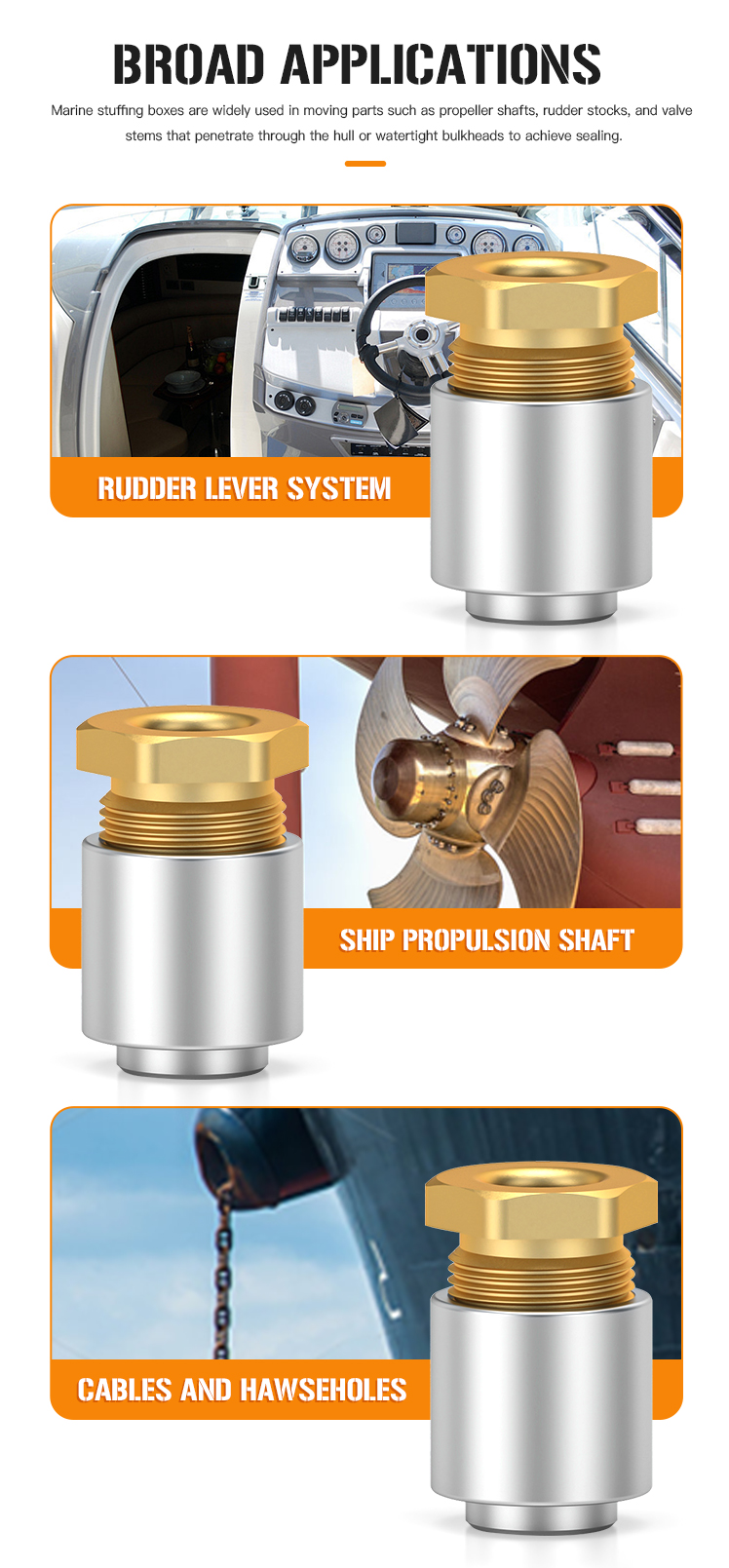

Applications

This cable gland is designed for demanding marine applications. It is suitable for securing and sealing cable holes in ship control panels, navigation and communication systems, deck lighting, and power distribution devices. Its robust design can protect connections in the engine room, open decks, and ballast water systems. It is suitable for use in marine environments, including buoys, dock equipment, and other coastal facilities, where resistance to saltwater corrosion and weather resistance are crucial for operational safety and lifespan.

Key Benefits

Corrosion-Proof Construction

Ensures long-term durability and reliability, resisting the harsh effects of marine atmospheres.

Full Environmental Sealing

Provides peace of mind with robust ingress protection for safe operation in wet and dusty conditions.

Extreme Temperature Resilience

Maintains integrity and function despite fluctuating temperatures encountered at sea.

Versatile & Easy Installation

Simplified compatibility with a broad range of marine cables and standard thread types reduces installation time and effort.

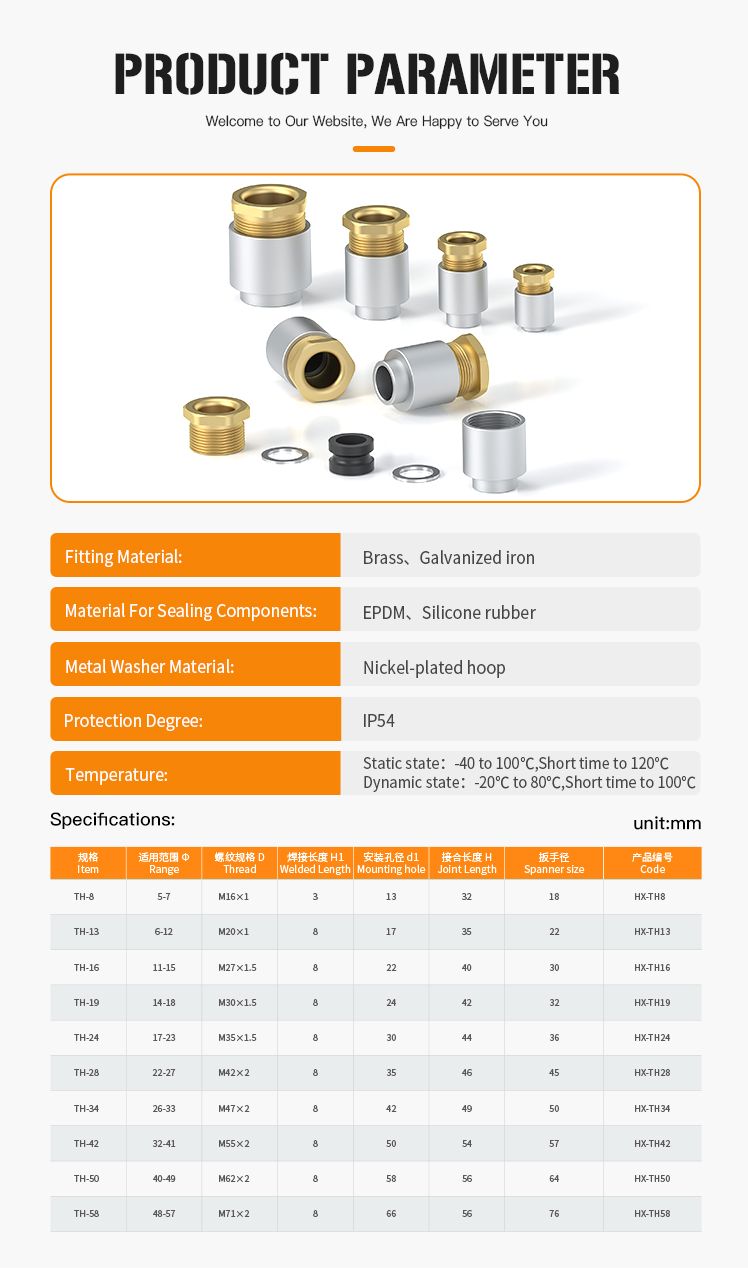

Technical Parameters

unit: mm

Item	Range	D Thread	H1 Welded Length	d1 Mounting hole	H Joint Length	Spanner size	Code
TH-8	5-7	M16×1	3	13	32	18	TH8
TH-13	6-12	M20×1	8	17	35	22	TH13
TH-16	11-15	M27×1.5	8	22	40	30	TH16
TH-19	14-18	M30×1.5	8	24	42	32	TH19
TH-24	17-23	M35×1.5	8	30	44	36	TH24
TH-28	22-27	M42×2	8	35	46	45	TH28
TH-34	26-33	M47×2	8	42	49	50	TH34
TH-42	32-41	M55×2	8	50	54	57	TH42
TH-50	40-49	M62×2	8	58	56	64	TH50
TH-58	48-57	M71×2	8	66	56	76	TH58

Detailed Image

Frequently Asked Questions

Q1: What materials are these marine cable glands made of?

They are constructed from either nickel-plated brass or stainless steel, both of which provide excellent resistance to corrosion in harsh saltwater environments.

Q2: What is the IP rating of these cable glands?

These glands achieve up to an IP68 protection level, ensuring they are completely sealed against water, dust, and oil ingress.

Q3: What is the operating temperature range?

The products maintain stable performance across a wide thermal range, specifically from -40℃ to 120℃, making them suitable for extreme sea conditions.

Q4: Can they be used on open decks of ships?

Yes, their robust design and weather resistance make them ideal for open decks, engine rooms, and ballast water systems.

Q5: What cable sizes do these glands accommodate?

We offer various specifications that can accommodate cable diameters ranging from 5mm up to 50mm, with multiple thread types available.

Q6: Are these cable glands easy to install?

Yes, they are designed for simplified compatibility with a broad range of standard marine cables and thread types, which helps reduce installation time and effort.
