China IP68 and UL Right Angle 90° Cable Gland Manufacturers, Supplier

IP68 and UL Right Angle 90Â° Cable Gland for corrosion-resistant, space-saving cable management in demanding environments.

Certified for Global Marketsï¼š

æœªæ ‡é¢˜-1.png

Send Inquiry

Product Description

★

Product Highlights

◆ Our precision-engineered 90° design optimizes enclosure layout, enabling smooth cable direction changes and a cleaner installation profile where space is at a premium.

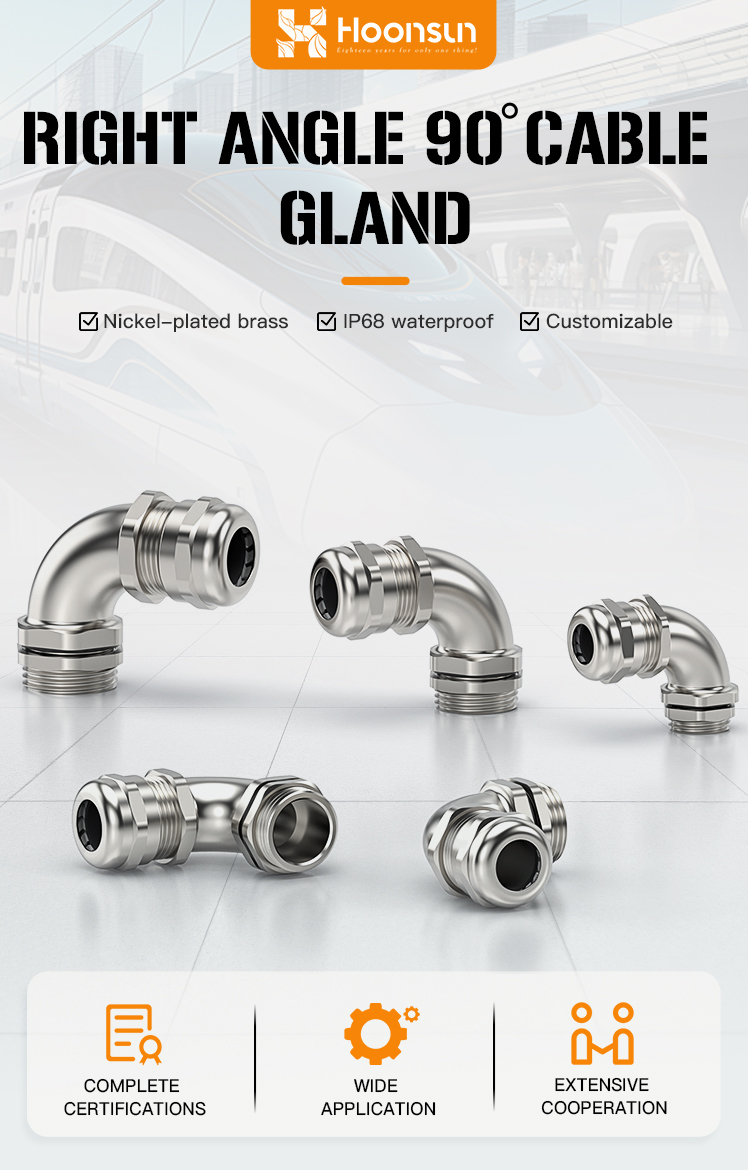

◆ Manufactured from robust nickel-plated brass or 316 stainless steel, the gland excels in harsh conditions, providing outstanding corrosion and impact resistance for maximum longevity.

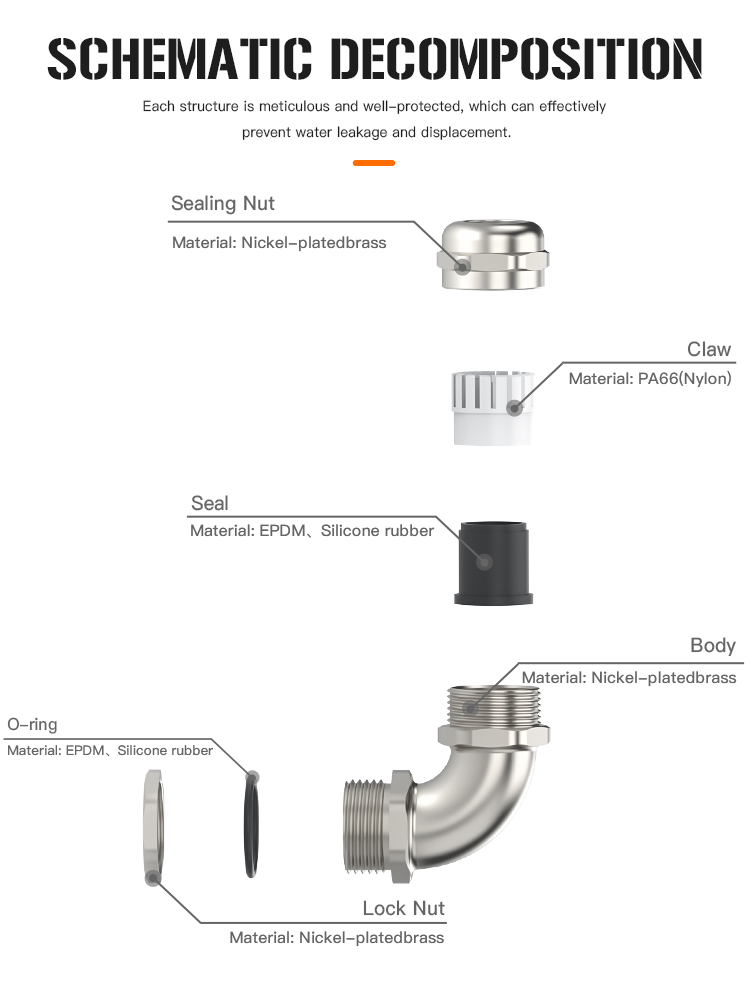

◆ A superior multi-component sealing system, featuring a high-grade sealing ring and compression seal, guarantees a consistent IP68 rating, effectively blocking moisture, dust, and oils.

◆ The integrated strain relief and vibration-dampening design lock cables securely in place, preventing pull-out and protecting connection integrity in dynamic settings.

◆ Offering broad compatibility, the gland is supplied in PG, NPT, and Metric thread standards and is backed by recognized international certifications including UL, CE, and RoHS for guaranteed quality and safety.

✔

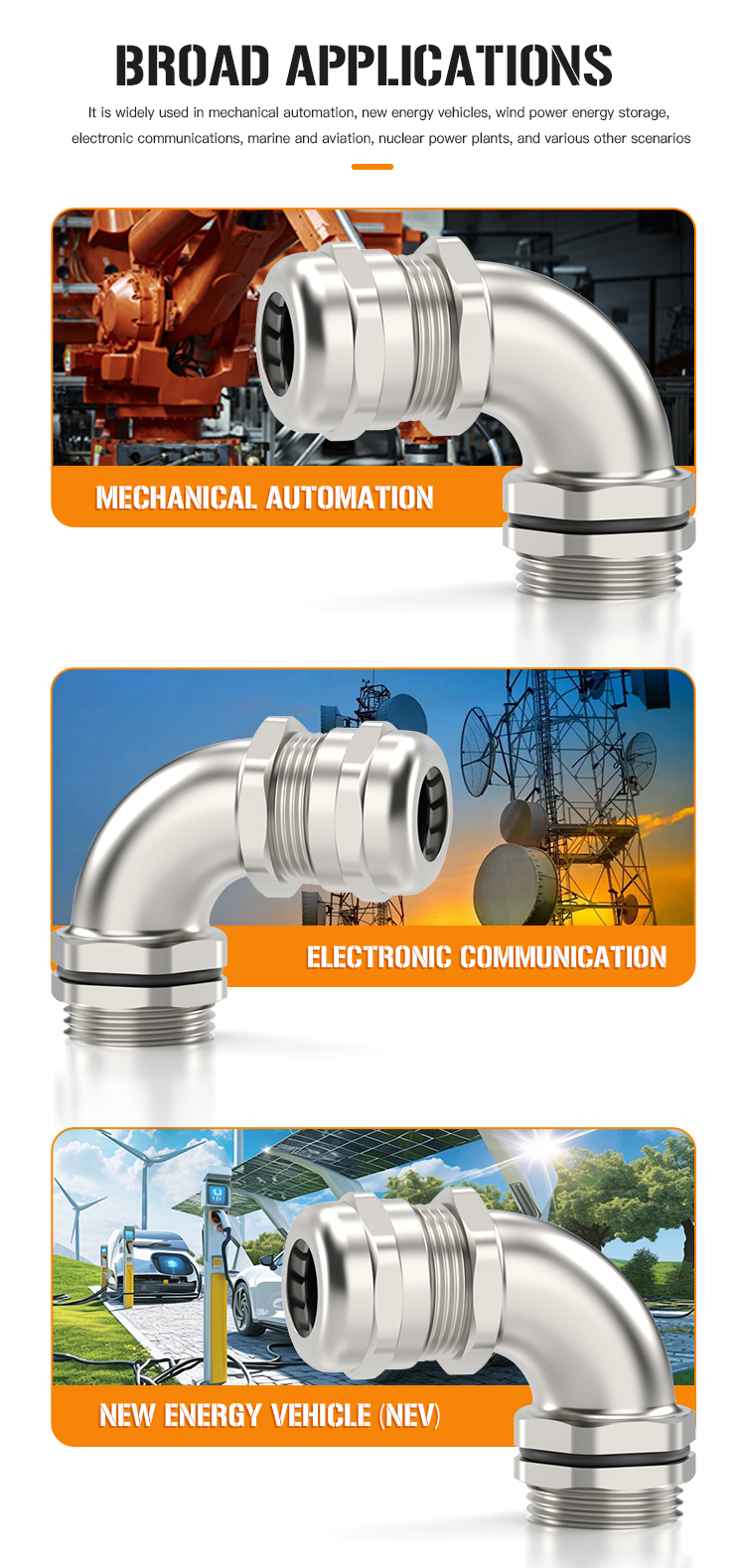

Applications & Key Benefits

Applications

◇Ideal for control panels and industrial automation systems.

◇Suitable for marine installations and heavy-duty machinery.

◇Perfect for robotics and applications requiring precise cable management.

Key Benefits

◆Maximizes space efficiency and improves system aesthetics.

◆Prevents mechanical strain, extending cable service life.

◆Maintains secure electrical connections under challenging conditions.

◆Offers robust protection against moisture, oil, and dust.

◆Ensures reliable performance with strong impact resistance.

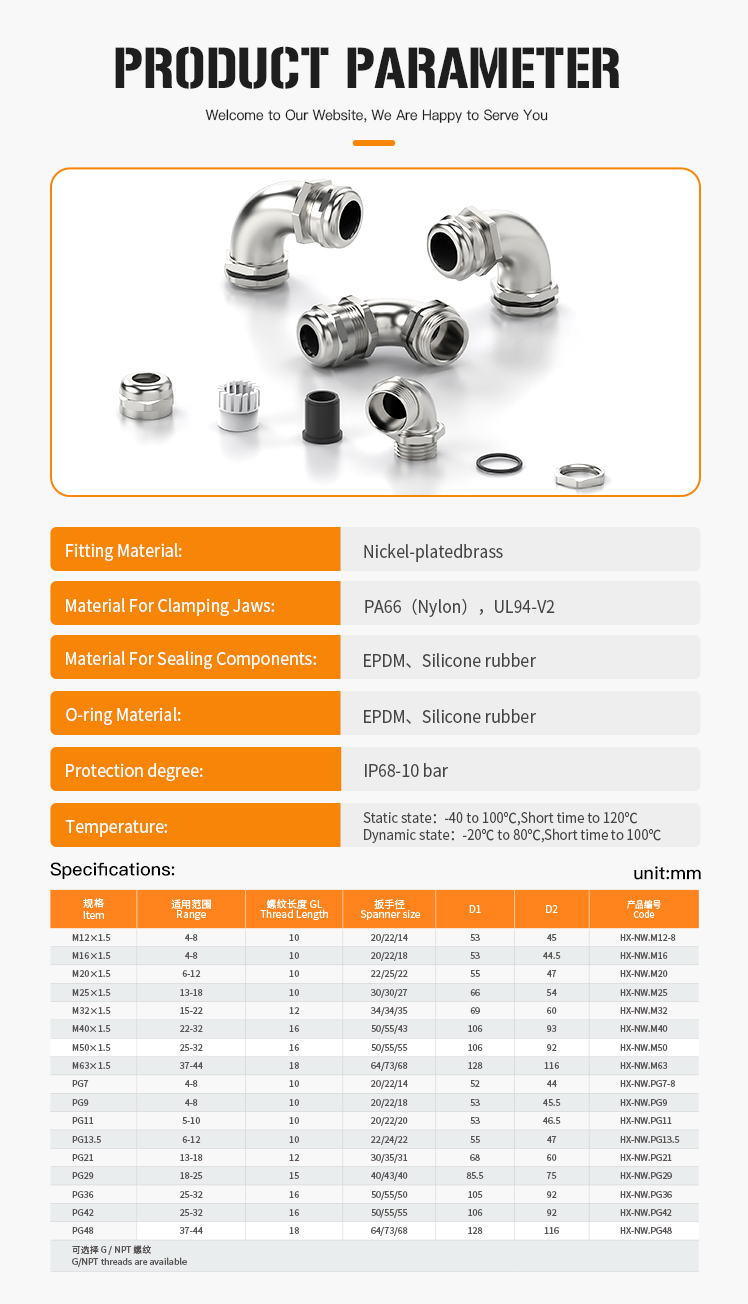

Product Parameters

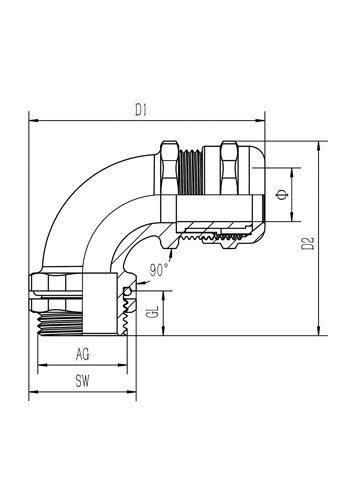

IP68 and UL Right Angle 90° Cable Gland Drawing

Unit: mm

Item	Range	GL Thread Length	Spanner size	D1	D2	Code
M12×1.5	4-8	10	20/22/14	53	45	HX-NW.M12-8
M16×1.5	4-8	10	20/22/18	53	44.5	HX-NW.M16
M20×1.5	6-12	10	22/25/22	55	47	HX-NW.M20
M25×1.5	13-18	10	30/30/27	66	54	HX-NW.M25
M32×1.5	15-22	12	34/34/35	69	60	HX-NW.M32
M40×1.5	22-32	16	50/55/43	106	93	HX-NW.M40
M50×1.5	25-32	16	50/55/55	106	92	HX-NW.M50
M63×1.5	37-44	18	64/73/68	128	116	HX-NW.M63
PG7	4-8	10	20/22/14	52	44	HX-NW.PG7-8
PG9	4-8	10	20/22/18	53	45.5	HX-NW.PG9
PG11	5-10	10	20/22/20	53	46.5	HX-NW.PG11
PG13.5	6-12	10	22/24/22	55	47	HX-NW.PG13.5
PG21	13-18	12	30/35/31	68	60	HX-NW.PG21
PG29	18-25	15	40/43/40	85.5	75	HX-NW.PG29
PG36	25-32	16	50/55/50	105	92	HX-NW.PG36
PG42	25-32	16	50/55/55	106	92	HX-NW.PG42
PG48	37-44	18	64/73/68	128	116	HX-NW.PG48
G/NPT threads are available

📷

Detailed Images

Frequently Asked Questions

What is the protection rating of this 90° cable gland?

The gland is designed to provide a consistent IP68 rating, ensuring complete protection against dust and high-pressure water submersion.

What materials are available for the 90° design?

It is manufactured using high-quality nickel-plated brass or 316 stainless steel to ensure maximum durability and corrosion resistance.

Are different thread types supported?

Yes, we offer a wide range of thread standards including Metric (M), PG, and NPT to meet various international installation requirements.

Can this gland be used in high-vibration environments?

Absolutely. The integrated strain relief and vibration-dampening design make it ideal for dynamic settings like robotics and industrial machinery.

Is the product compliant with international safety standards?

Yes, the 90° cable glands are UL, CE, and RoHS certified, ensuring they meet strict global quality and safety protocols.

What are the primary advantages of the right-angle design?

The 90° angle optimizes space in tight enclosures, prevents cable strain from sharp bends, and improves overall system aesthetics and cable management.
