China Nylon Cable Gland with IP68 and UL Supplier, Suppliers

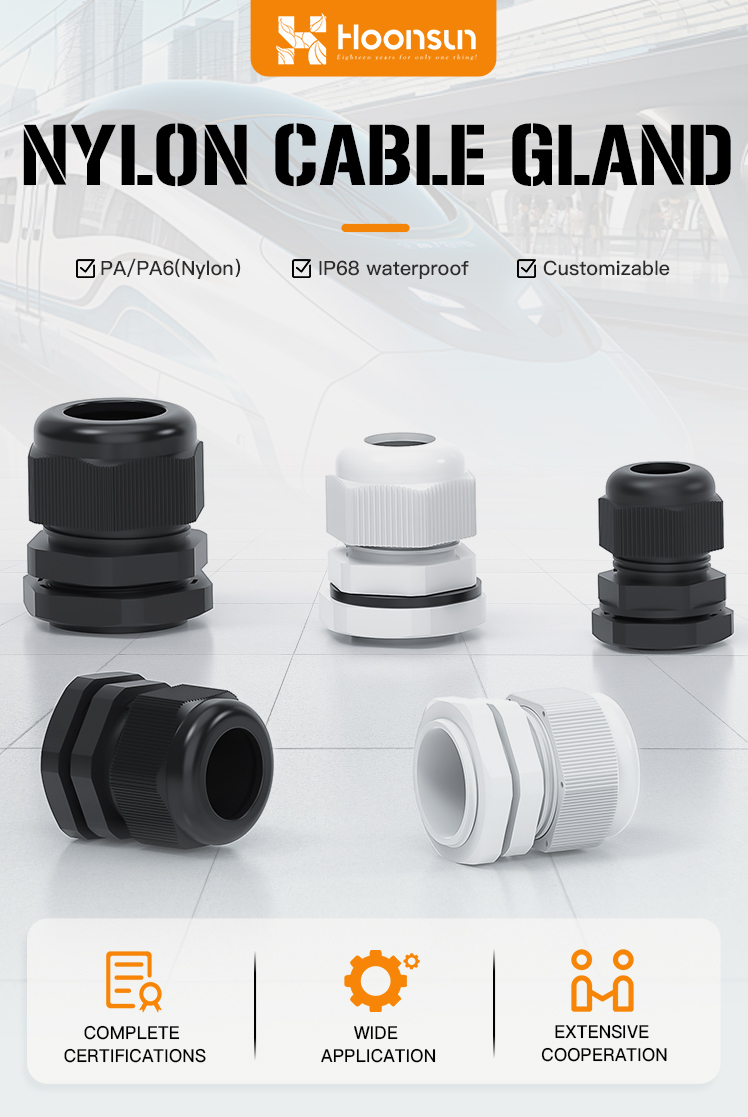

The Nylon Cable Gland, an economical sealing component, offers outstanding safety, corrosion resistance and reliable cable sealing performance in electrical applications.

Certified for Global Marketsï¼š

æœªæ ‡é¢˜-1.png

Send Inquiry

Product Description

📦 Product Overview

Product Highlights

Made from durable nylon, offering excellent sealing, strain relief, and insulation
Lightweight yet strong, resistant to pulling, twisting, and vibration
IP68-rated for superior waterproof and dustproof performance
UL-certified for safety and reliability
Non-conductive material ensures electrical safety
Resistant to corrosion, acids, oils, and most chemicals
Easy to install and remove without special tools

Applications

Electrical panels and equipment
Machinery and industrial control systems
Communication and data transmission systems
Outdoor or humid environments
Factories, marine settings, and harsh working conditions

Key Benefits

Safe and reliable cable protection with excellent insulation performance
Maintains consistent performance even in harsh environments.
Economical and cost-effective solution with low maintenance costs.
Flexible design accommodates various sizes of cables.
Lighter, more durable, and lower cost compared with metal products.

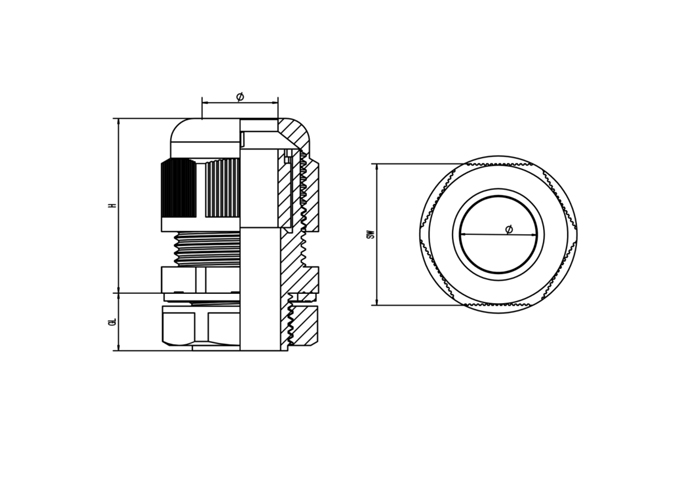

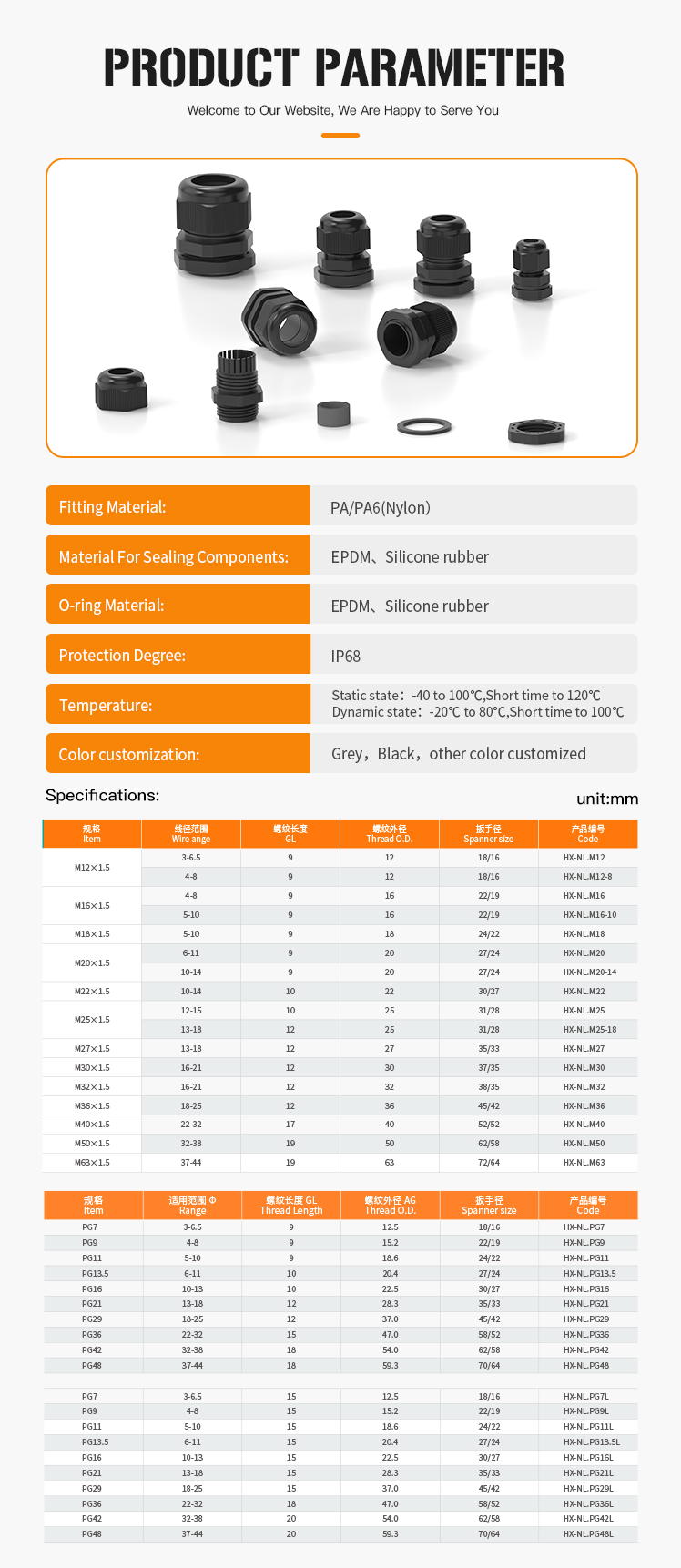

⚙️ Product Parameters

Code	Scope of application	AG Thread size	GL Length of thread	SW Torque wrench size
HX-NL.M12-6.5B	3-6.5	M12*1.5	8	18/15

Item	Wire Range	GL	Thread O.D.	Spanner Size	Code
M12×1.5	3-6.5	9	12	18/16	HX-NL.M12
M12×1.5	4-8	9	12	18/16	HX-NL.M12-8
M16×1.5	4-8	9	16	22/19	HX-NL.M16
M16×1.5	5-10	9	16	22/19	HX-NL.M16-10
M18×1.5	5-10	9	18	24/22	HX-NL.M18
M20×1.5	6-11	9	20	27/24	HX-NL.M20
M20×1.5	10-14	9	20	27/24	HX-NL.M20-14
M22×1.5	10-14	10	22	30/27	HX-NL.M22
M25×1.5	12-15	10	25	31/28	HX-NL.M25
M25×1.5	13-18	12	25	31/28	HX-NL.M25-18
M27×1.5	13-18	12	27	35/33	HX-NL.M27
M30×1.5	16-21	12	30	37/35	HX-NL.M30
M32×1.5	16-21	12	32	38/35	HX-NL.M32
M36×1.5	18-25	12	36	45/42	HX-NL.M36
M40×1.5	22-32	17	40	52/52	HX-NL.M40
M50×1.5	32-38	19	50	62/58	HX-NL.M50
M63×1.5	37-44	19	63	72/64	HX-NL.M63

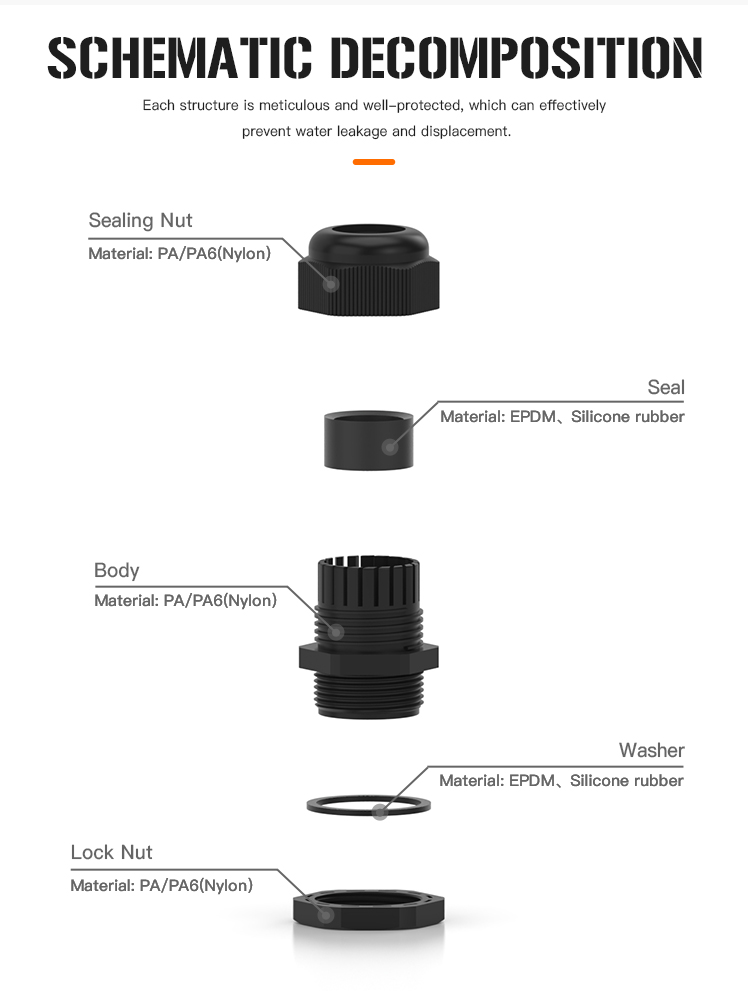

📸 Detailed Images

❓ Frequently Asked Questions

Q1: What materials are the cable glands made of? A: They are made from high-quality, durable nylon that provides excellent insulation and resistance to environmental factors.

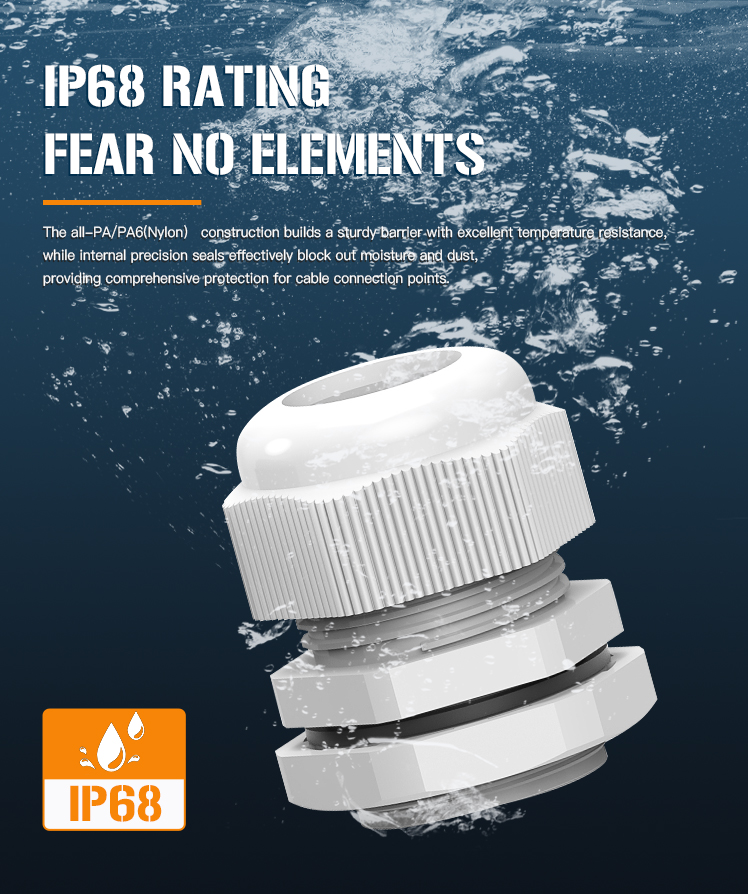

Q2: What is the waterproof rating for these nylon cable glands? A: These products are IP68-rated, ensuring superior waterproof and dustproof performance even in humid or outdoor settings.

Q3: Are these cable glands safety certified? A: Yes, they are UL-certified, which guarantees they meet high standards for safety and reliability in industrial applications.

Q4: Can these be used in environments with chemical exposure? A: Absolutely. The nylon material is resistant to corrosion, acids, oils, and most common industrial chemicals.

Q5: Is special equipment required for installation? A: No, the design allows for easy installation and removal without the need for specialized tools.

Q6: How do nylon cable glands compare to metal alternatives? A: Nylon versions are lighter, more cost-effective, non-conductive for electrical safety, and offer excellent durability in harsh working conditions.
