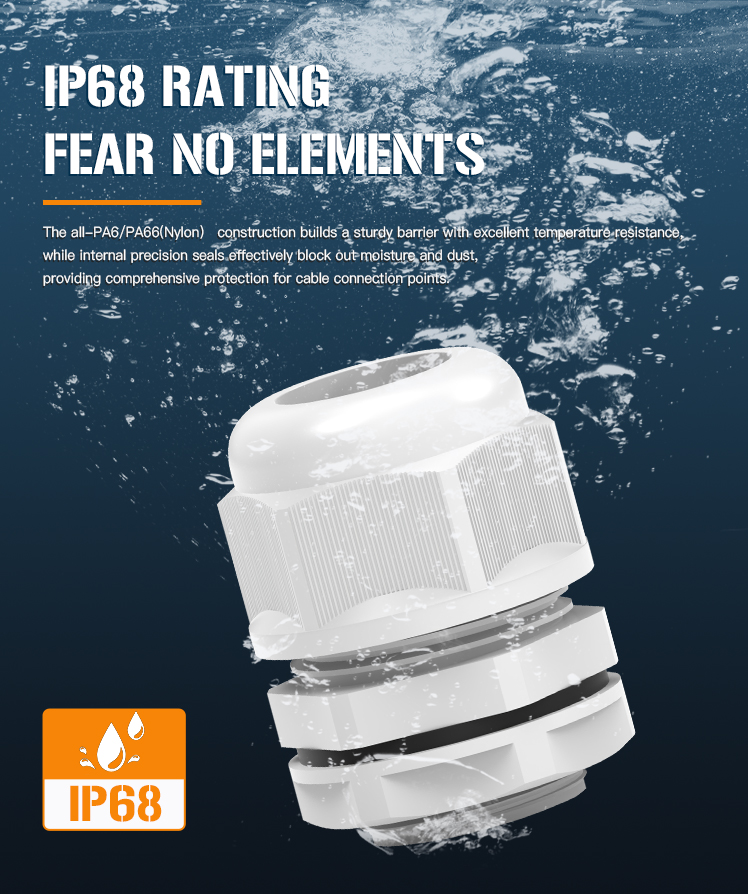

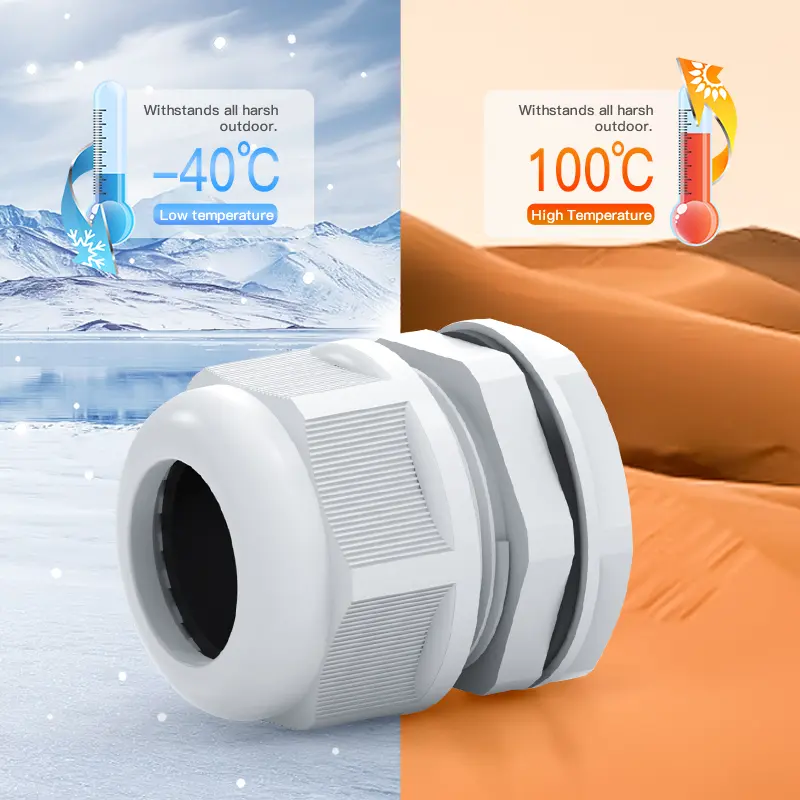

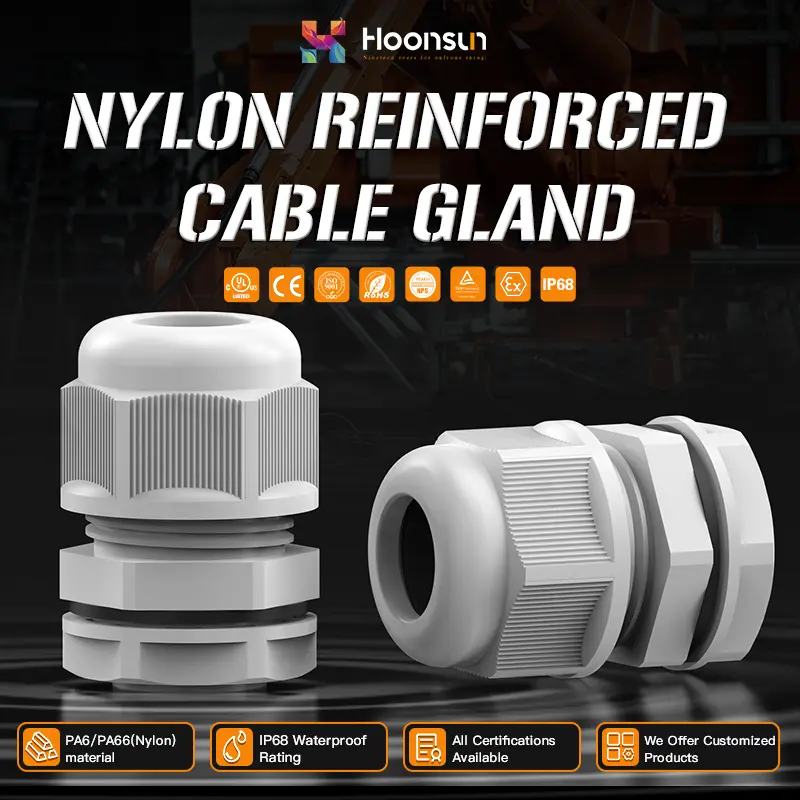

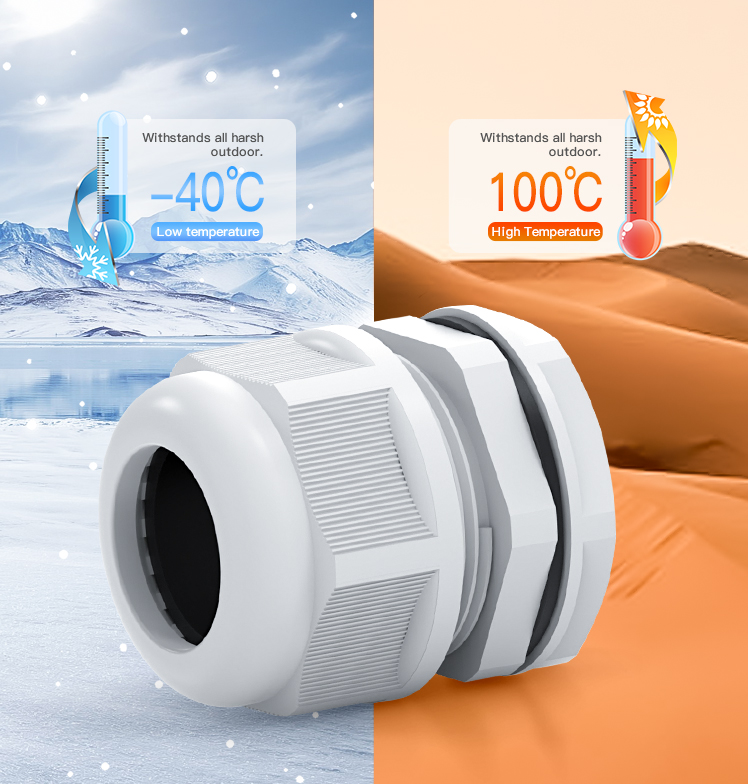

Constructed with reinforced nylon, the Nylon Reinforced Cable Gland offers an IP68-rated, reliable seal, effectively preventing water and dust intrusion. Its robust material also boasts flame-retardant properties, making it suitable for extreme temperature environments, and is available in a variety of custom colors.
Certified for Global Markets：
Suitable for industrial, electrical, and electronic applications where waterproof, dustproof, and reliable cable sealing is required, such as in outdoor equipment, machinery, and environments with harsh conditions.

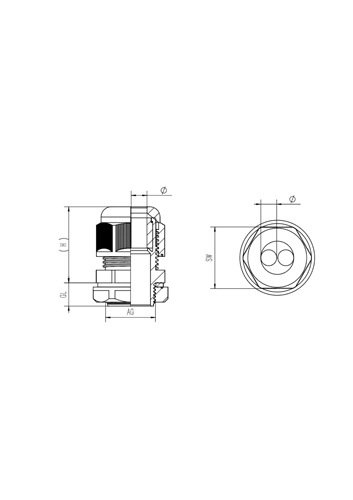

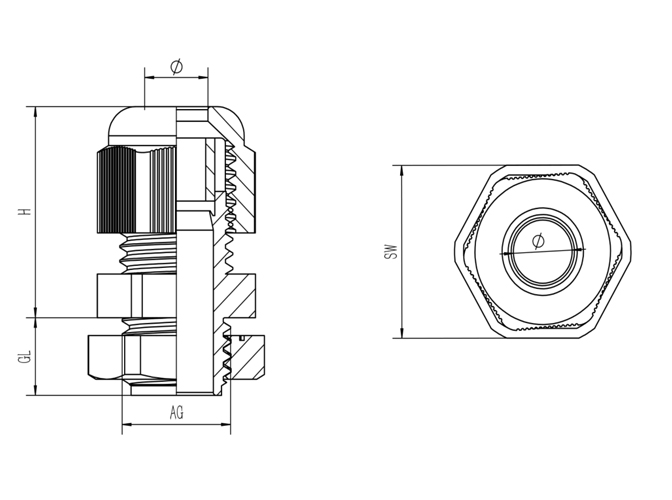

| Code | Scope of application | AG Thread size | GL Length of Thread | SW Torque wrench size |
| HX-NL.M12-6.5 | 3-6.5 | M12*1.5 | 9 | 18/16 |

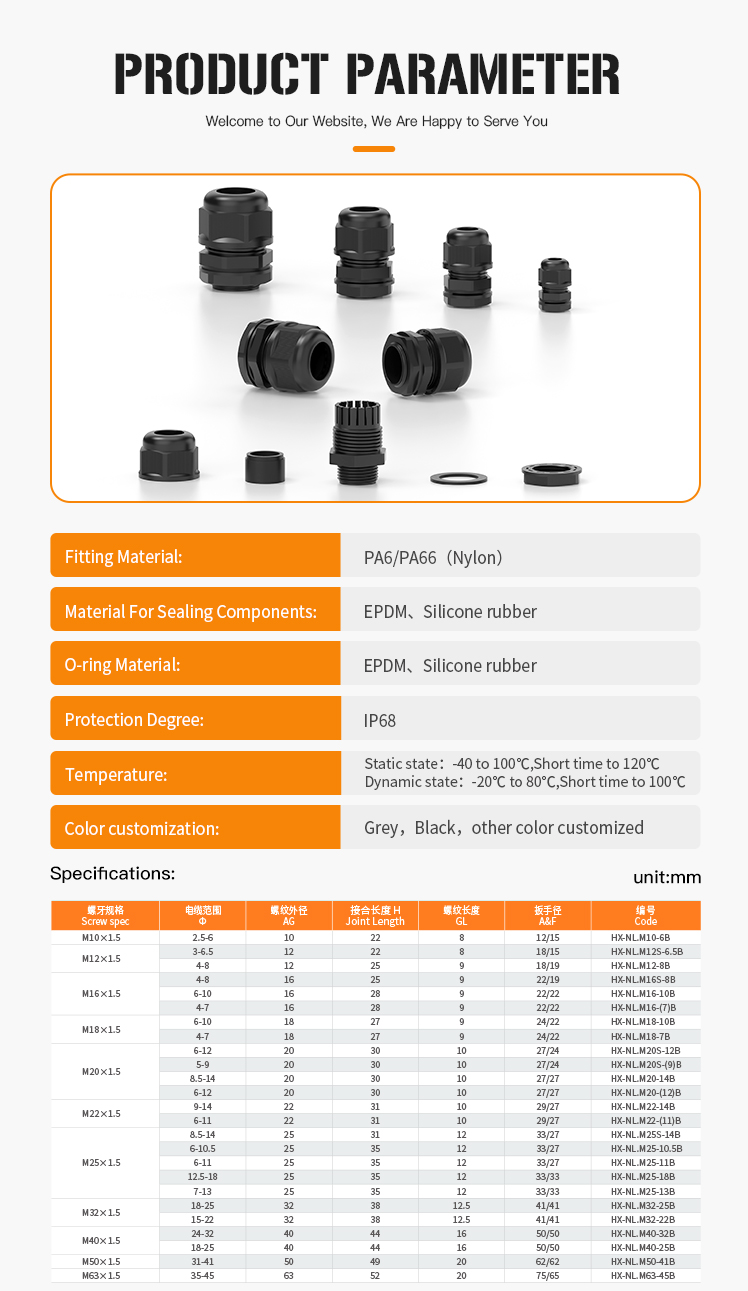

| Screw spec | Cable Range | AG Thread O.D. | H Joint Length | GL Thread Length | A&F Spanner size | Code |
| M10×1.5 | 2.5-6 | 10 | 22 | 8 | 12/15 | HX-NL.M10-6B |
| M12×1.5 | 3-6.5 | 12 | 22 | 8 | 18/15 | HX-NL.M12S-6.5B |
| M12×1.5 | 4-8 | 12 | 25 | 9 | 18/19 | HX-NL.M12-8B |
| M16×1.5 | 4-8 | 16 | 25 | 9 | 22/19 | HX-NL.M16S-8B |
| M20×1.5 | 6-12 | 20 | 30 | 10 | 27/24 | HX-NL.M20S-12B |
| M25×1.5 | 12.5-18 | 25 | 35 | 12 | 33/33 | HX-NL.M25-18B |
| M32×1.5 | 18-25 | 32 | 38 | 12.5 | 41/41 | HX-NL.M32-25B |
