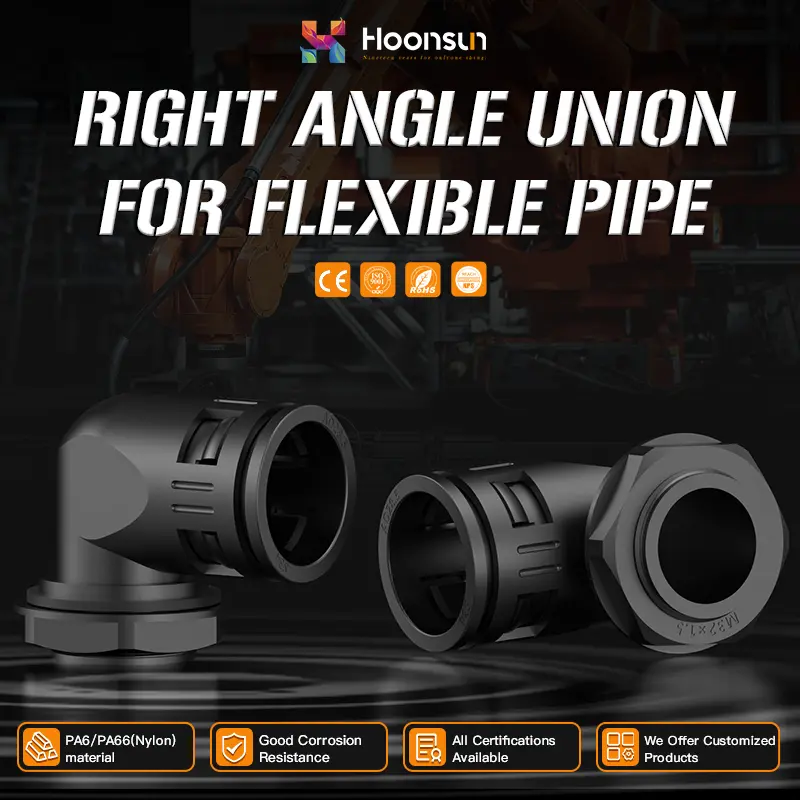

The Right Angle Union for Flexible Pipe features a 90° anti-bending design with UL certification and IP68 protection, ensuring durable, waterproof cable management for dynamic industrial applications.

Certified for Global Markets：


Send Inquiry

Product Description

Product Highlights

🛡️
UL-Listed & IP68-Rated Certified for ultimate safety and complete dust/waterproof protection.
📐
90° Right-Angle Design Anti-bending design prevents cable kinking and stress in tight spaces.
⚡
Quick-Lock Installation Tool-free installation saves time and labor for vibration-proof connections.
🧪

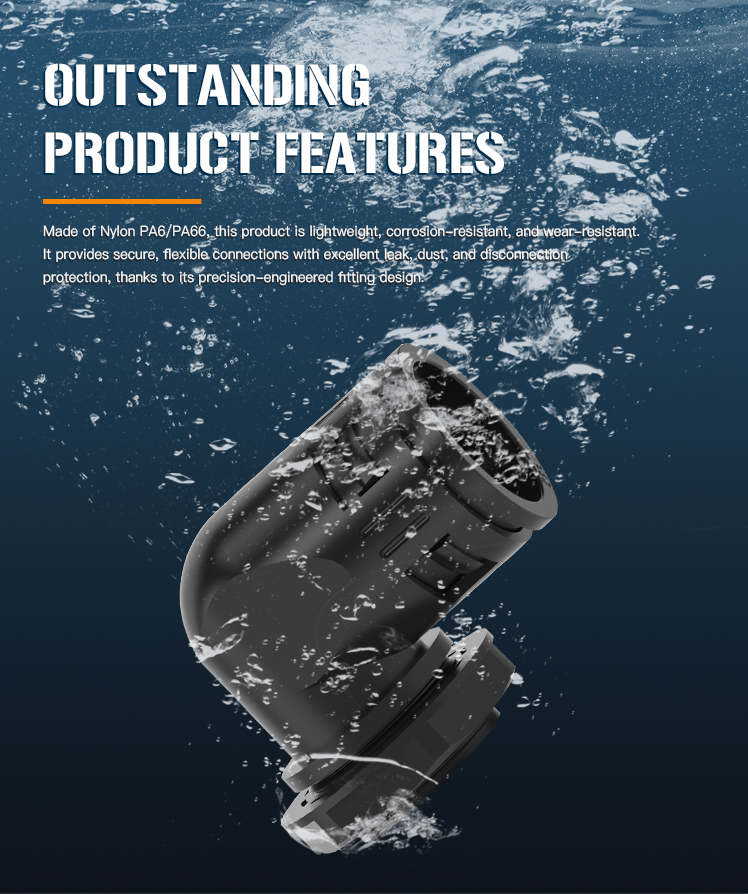

Superior Material Made of flame-retardant, high-strength PA66 Nylon for durability.
🌍
Global Compatibility Metric, PG, and NPT threads to fit worldwide equipment standards.
🤖
Ideal for Dynamic Motion Built for high-movement applications in robotics and automation.

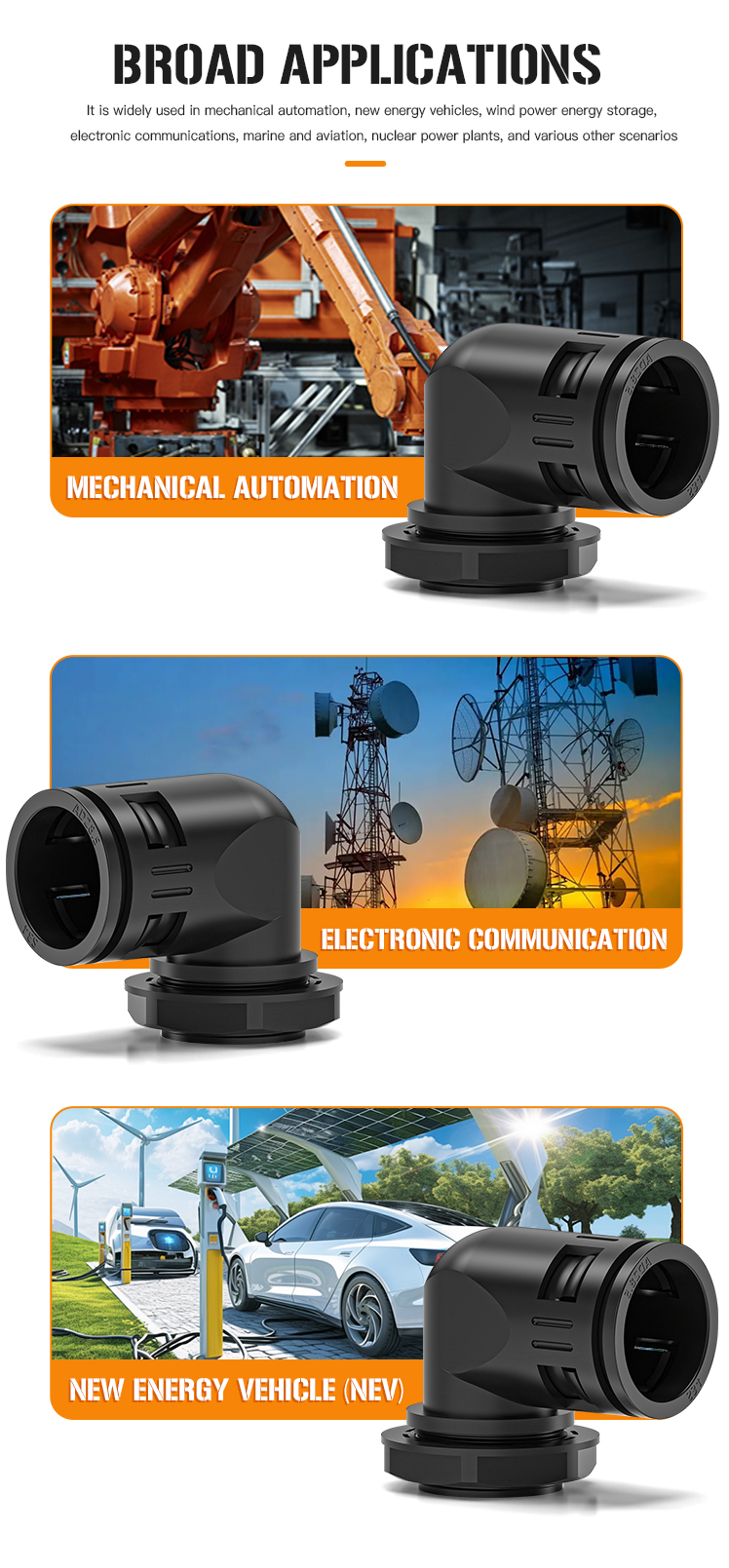

Applications

Industrial Robotics Ensures reliable cable management in continuous-motion arms and gantries.
CNC Machinery Protects cables from oil, coolant, and repetitive vibration.
Electrical Enclosures Provides strain relief and secure entry/exit for conduits.
Harsh Environments Safeguards connections in wash-down areas or dusty production floors.

Key Benefits

  • ✅ Maximize Cable Service Life: Anti-bending design reduces failure points and maintenance costs.
  • ✅ Ensure Uninterrupted Operation: IP68 sealing prevents failures caused by contaminants.
  • ✅ Accelerate Installation: Quick-connect design slashes project time significantly.
  • ✅ Global Compliance: UL, CE, and RoHS certifications for international markets.

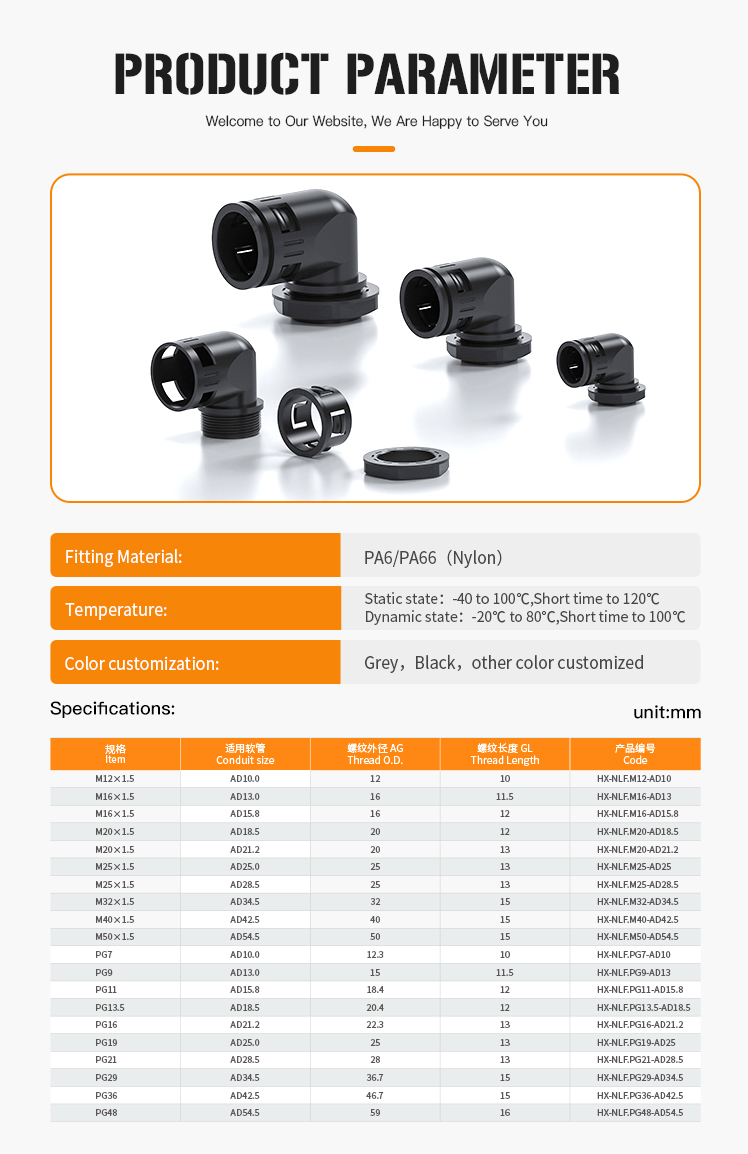

Product Parameters

Unit: mm
Item Conduit size AG Thread O.D. GL Thread Length Code
M12×1.5AD10.01210HX-NLF.M12-AD10
M16×1.5AD13.01611.5HX-NLF.M16-AD13
M16×1.5AD15.81612HX-NLF.M16-AD15.8
M20×1.5AD18.52012HX-NLF.M20-AD18.5
M20×1.5AD21.22013HX-NLF.M20-AD21.2
M25×1.5AD25.02513HX-NLF.M25-AD25
M25×1.5AD28.52513HX-NLF.M25-AD28.5
M32×1.5AD34.53215HX-NLF.M32-AD34.5
M40×1.5AD42.54015HX-NLF.M40-AD42.5
M50×1.5AD54.55015HX-NLF.M50-AD54.5
PG7AD10.012.310HX-NLF.PG7-AD10
PG9AD13.01511.5HX-NLF.PG9-AD13
PG11AD15.818.412HX-NLF.PG11-AD15.8
PG13.5AD18.520.412HX-NLF.PG13.5-AD18.5
PG16AD21.222.313HX-NLF.PG16-AD21.2
PG19AD25.02513HX-NLF.PG19-AD25
PG21AD28.52813HX-NLF.PG21-AD28.5
PG29AD34.536.715HX-NLF.PG29-AD34.5
PG36AD42.546.715HX-NLF.PG36-AD42.5
PG48AD54.55916HX-NLF.PG48-AD54.5

Detailed Image

Right Angle Union 1

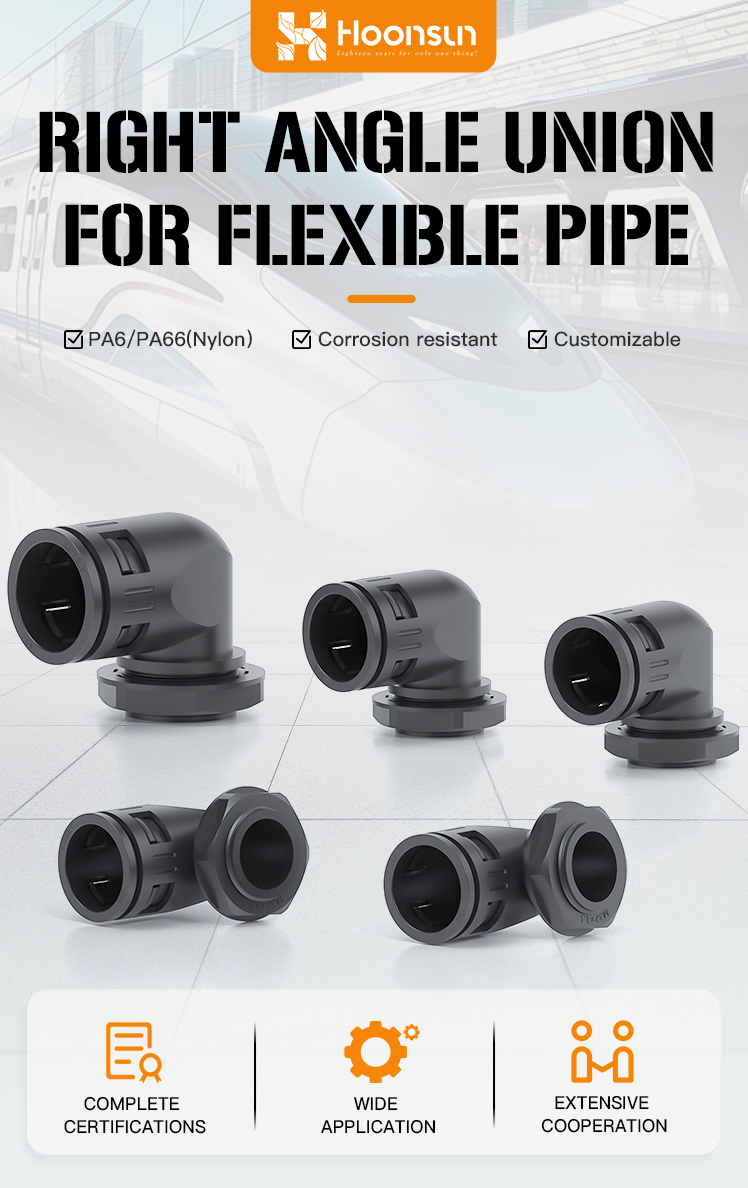

Right Angle Union 2
Right Angle Union 3
Right Angle Union 4

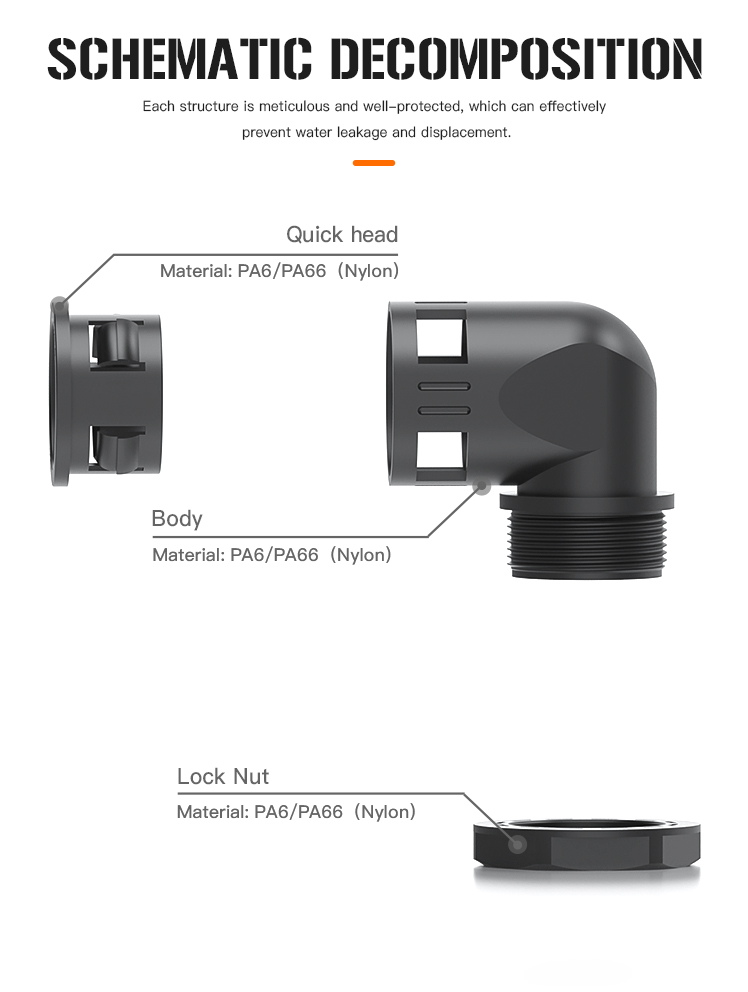

Right Angle Union 5

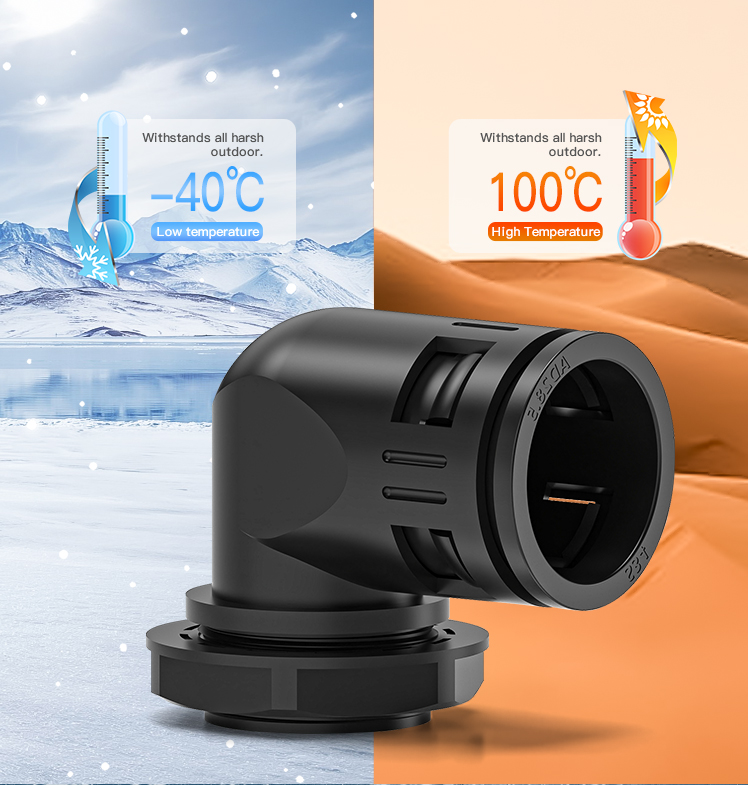

Right Angle Union 6
Right Angle Union 7
Right Angle Union 8
Right Angle Union 9
Right Angle Union 10
Right Angle Union 11

Frequently Asked Questions

What does IP68 rating mean for this connector?
IP68 is the highest level of protection against dust and water ingress. It ensures the union remains completely dust-tight and can withstand long-term immersion in water.
How does the 90° right-angle design benefit my installation?
The right-angle design allows for secure cable management in confined spaces and prevents the flexible pipe from bending too sharply, which extends cable life.
Is this product compatible with different thread standards?
Yes, our right-angle unions are available in Metric, PG, and NPT thread types to meet international equipment requirements.
Are these unions suitable for robotic applications?
Absolutely. They are specifically engineered for high-movement and dynamic motion environments like industrial robotics and automated assembly lines.
Does the installation require specialized tools?
No, these feature a quick-lock, tool-free installation design that ensures a vibration-proof connection with minimal effort.
Is the PA66 Nylon material flame-retardant?
Yes, the high-strength PA66 Nylon used is flame-retardant and highly resistant to environmental factors like chemicals and UV exposure.
